Search › Model › NDE150

NDE150

Toyota AURIS-COROLLA · 2006 · 4,719 parts · 237 categories

4,719 items

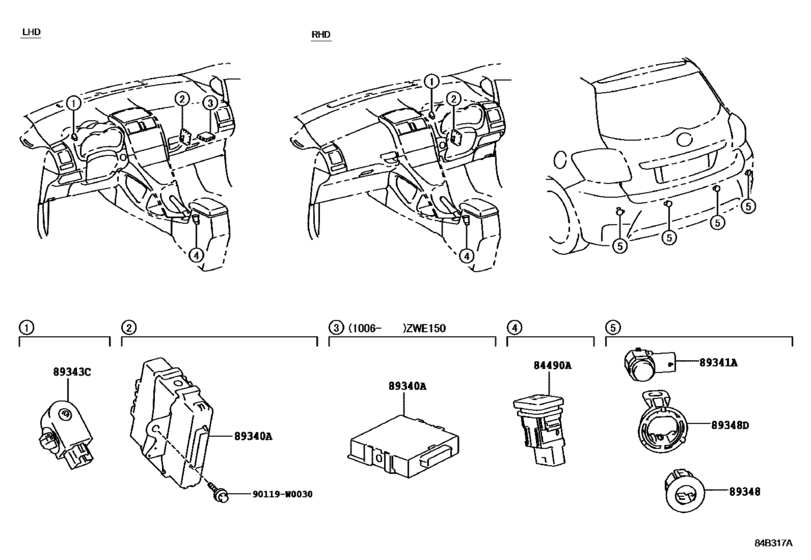

Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL) 25

#	OEM	Part name
84490	84490-05010	Switch Assy, Back Sonar Or Clearance Sonar
89340	89340-02010	Computer Assy, Clearance Warning
89341	89341-05010-A0	Sensor, Ultrasonic, No.1
89341	89341-05010-B0	Sensor, Ultrasonic, No.1
89341	89341-05010-B2	Sensor, Ultrasonic, No.1
89341	89341-05010-B4	Sensor, Ultrasonic, No.1
89341	89341-05010-C0	Sensor, Ultrasonic, No.1
89341	89341-05010-D0	Sensor, Ultrasonic, No.1
89341	89341-05010-J0	Sensor, Ultrasonic, No.1
89341	89341-05010-J2	Sensor, Ultrasonic, No.1
89341	89341-05010-J5	Sensor, Ultrasonic, No.1
89341	89341-05010-K0	Sensor, Ultrasonic, No.1
89343	89343-30010	Buzzer, Clearance Warning
89348	89348-02010-A0	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-B0	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-B1	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-B3	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-C0	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-D0	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-J0	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-J1	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-J3	Retainer, Ultrasonic Sensor, No.1
89348	89348-02010-K0	Retainer, Ultrasonic Sensor, No.1
89348	89348-02020	Clip, Ultrasonic Sensor
90119	90119-W0030	New Genuine Part

OEM	Part name	Category
84490-05010	Switch Assy, Back Sonar Or Clearance Sonar	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89340-02010	Computer Assy, Clearance Warning	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-A0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-B0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-B2	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-B4	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-C0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-D0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-J0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-J2	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-J5	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89341-05010-K0	Sensor, Ultrasonic, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89343-30010	Buzzer, Clearance Warning	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-A0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-B0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-B1	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-B3	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-C0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-D0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-J0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-J1	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-J3	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02010-K0	Retainer, Ultrasonic Sensor, No.1	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
89348-02020	Clip, Ultrasonic Sensor	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
90119-W0030	New Genuine Part	Clearance & Back Sonar ([12.2009 - ] (0912- )ADE15#,ZRE152..LHD..5D..SOL ; (0912- )NDE150,NRE150,ZRE151..5D..MTM.. E,SOL ; (1001- )3D..SOL)
