NDE140

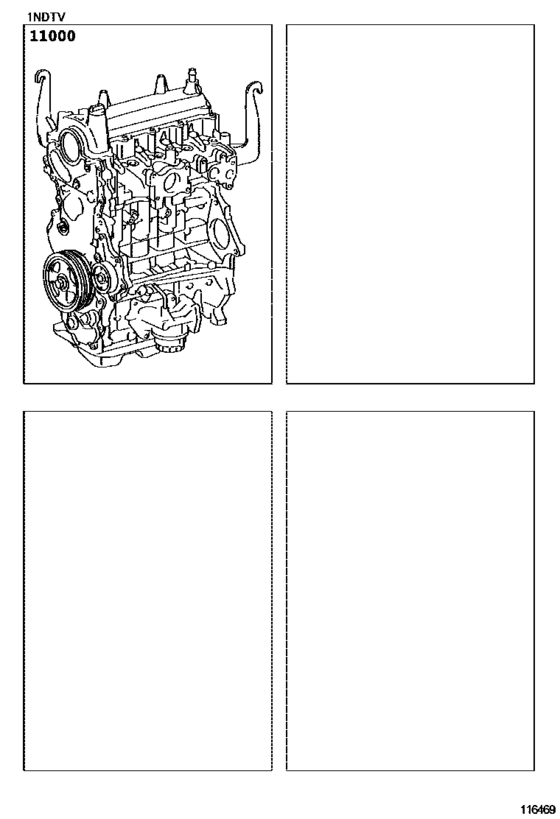

Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) 7
| # | OEM | Part name |
|---|---|---|
| 11000 | 19000-33321 | Engine Assy, Partial |
| 11000 | 16262-33011 | Hose, Water Inlet |
| 11000 | 16206-33041 | Pipe Sub-Assy, Water By-Pass |
| 11000 | 16263-33030 | Hose, Water Inlet |
| 11000 | 90301-20016 | Ring, O(For Water By-Pass Pipe) |
| 11000 | 19000-33323 | Engine Assy, Partial |
| 11000 | 19000-33322 | Engine Assy, Partial |
| OEM | Part name | Category |
|---|---|---|
| 16206-33041 | Pipe Sub-Assy, Water By-Pass | Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) |
| 16262-33011 | Hose, Water Inlet | Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) |
| 16263-33030 | Hose, Water Inlet | Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) |
| 19000-33321 | Engine Assy, Partial | Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) |
| 19000-33322 | Engine Assy, Partial | Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) |
| 19000-33323 | Engine Assy, Partial | Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) |
| 90301-20016 | Ring, O(For Water By-Pass Pipe) | Partial Engine Assembly ([06.2010 - ] (1006- )1NDTV) |
