NDE140

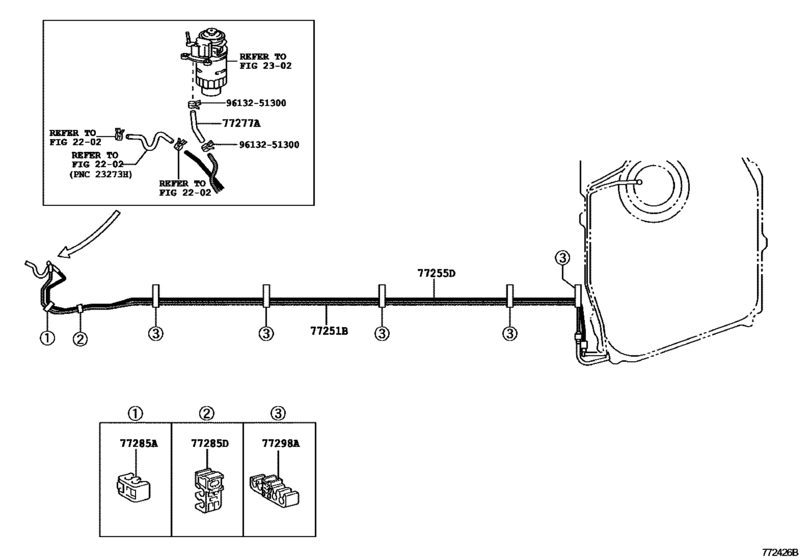

Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) 8
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-02540 | Tube, Fuel Main |
| 77255 | 77255-02330 | Tube, Fuel Return |
| 77277 | 95337-08019 | Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1(FOR FUEL MAIN TUBE) |
| 77277 | 95337-08020 | Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1) |
| 77285 | 77285-42110 | Support, Fuel Return And Main Tube |
| 77285 | 77285-50040 | Clamp, Fuel Tube, No.1 |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| 9613251300 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| OEM | Part name | Category |
|---|---|---|
| 77251-02540 | Tube, Fuel Main | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
| 77255-02330 | Tube, Fuel Return | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
| 77285-42110 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
| 77285-50040 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
| 95337-08019 | Hose, Fuel, No.2 (For Fuel Return Tube) - FUEL, NO.1(FOR FUEL MAIN TUBE) | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
| 95337-08020 | Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1) | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Fuel Tank & Tube ([08.2008 - ] FUEL TUBE (0808- )CE140,NDE140) |
