Search › Model › NDE140

NDE140

Toyota COROLLA-ALTIS · 2010 · 3,214 parts · 185 categories

3,214 items

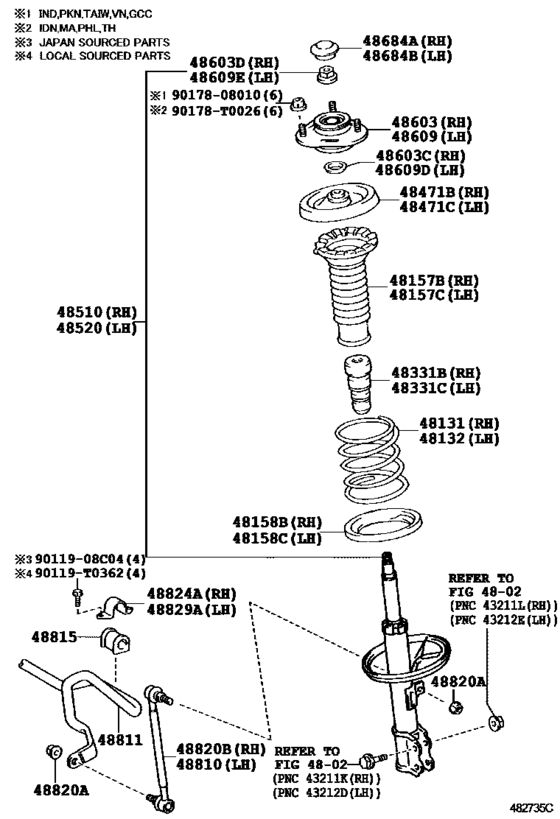

Front Spring & Shock Absorber ([12.2007 - ] (0712- )) 22

#	OEM	Part name
48131	48131-02K40	Spring, Front Coil, Rh
48157	48157-02020	Insulator, Front Coil Spring, Upper Rh
48158	48158-02030	Insulator, Front Coil Spring, Lower Rh
48331	48331-12210	Bumper, Front Spring, Rh
48471	48044-02140	Seat, Front Coil Spring, Upper Rh
48510	48510-8Z003	Absorber Assy, Shock, Front Rh
48520	48520-09T20	Absorber Assy, Shock, Front Lh
48603	48609-02200	Support Sub-Assy, Front Suspension
48603	48609-02201	Support Sub-Assy, Front Suspension
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48603	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48684	48684-02030	Cover, Front Suspension Support Dust, Rh
48810	48820-02090	Link Assy, Front Stabilizer, Lh
48810	48820-02091	Link Assy, Front Stabilizer, Lh
48811	48811-02260	Bar, Stabilizer, Front
48815	48815-12360	Bush, Front Stabilizer Bar, No.1
48820	90179-12151	Nut(For Front Stabilizer Link)
48824	48824-02070	Bracket, Front Stabilizer, No.1 Rh
90119	90119-T0362	New Genuine Part
90178	90178-T0026	Nut(For Front Suspension Support)
9011908	90119-08C04	BOLT WWASHER
9017808010	90178-08010	Nut(For Front Suspension Support)

OEM	Part name	Category
48044-02140	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48131-02K40	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48157-02020	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48158-02030	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48331-12210	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48510-8Z003	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48520-09T20	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48609-02200	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48609-02201	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48684-02030	Cover, Front Suspension Support Dust, Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48811-02260	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48815-12360	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48820-02090	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48820-02091	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
48824-02070	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
90119-08C04	BOLT WWASHER	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
90119-T0362	New Genuine Part	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
90178-08010	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
90178-T0026	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([12.2007 - ] (0712- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 185
Collected: 2026-08-02
