Search › Model › NDE140

NDE140

Toyota COROLLA-ALTIS · 2010 · 3,214 parts · 185 categories

3,214 items

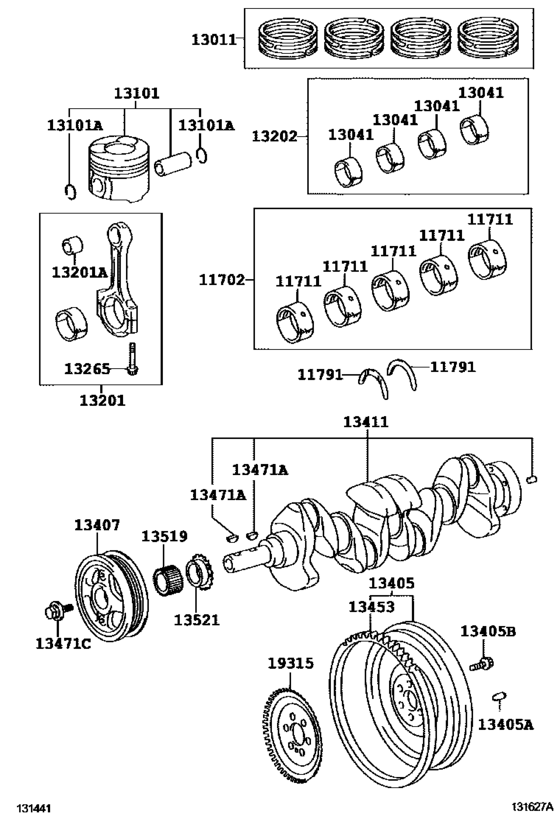

Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV) 48

#	OEM	Part name
11702	11704-21031	Bearing Set, Crankshaft
11702	11704-21032	Bearing Set, Crankshaft
11711	11701-21031-01	Bearing, Crankshaft
11711	11701-21032-01	Bearing, Crankshaft
11711	11701-21031-02	Bearing, Crankshaft
11711	11701-21032-02	Bearing, Crankshaft
11711	11701-21031-03	Bearing, Crankshaft
11711	11701-21032-03	Bearing, Crankshaft
11711	11701-21031-04	Bearing, Crankshaft
11711	11701-21032-04	Bearing, Crankshaft
11791	11791-33030	Washer, Crankshaft Thrust, Upper
11791	11792-33030	Washer, Crankshaft Thrust, Upper
11791	11793-33030	Washer, Crankshaft Thrust, Upper
13011	13011-33050	Ring Set, Piston
13011	13011-33052	Ring Set, Piston
13011	13011-33051	Ring Set, Piston
13011	13011-33053	Ring Set, Piston
13011	13011-33054	Ring Set, Piston
13041	13041-33041-01	Bearing, Connecting Rod
13041	13041-33041-02	Bearing, Connecting Rod
13041	13041-33041-03	Bearing, Connecting Rod
13101	13101-0N060-A0	Piston Sub-Assy, W/pin
13101	13101-0N060-B0	Piston Sub-Assy, W/pin
13101	13101-0N060-C0	Piston Sub-Assy, W/pin
13101	13101-0N061-A0	Piston Sub-Assy, W/pin
13101	13101-0N061-B0	Piston Sub-Assy, W/pin
13101	13101-0N061-C0	Piston Sub-Assy, W/pin
13101	13101-0N062-A0	Piston Sub-Assy, W/pin
13101	13101-0N062-B0	Piston Sub-Assy, W/pin
13101	13101-0N062-C0	Piston Sub-Assy, W/pin
13101	90080-52139	Ring, Hole Snap(For Piston Pin)
13201	13201-39055	Rod Sub-Assy, Connecting
13201	90999-73147	Bush(For Connecting Rod Small End)
13202	13204-33041	Bearing Set, Connecting Rod
13265	13265-21020	Bolt, Connecting Rod
13405	13405-33030	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90913-01024	Bolt, Flywheel Setting
13407	13407-33050	Damper Sub-Assy, Crankshaft
13411	13401-33020	Crankshaft
13411	13401-33021	Crankshaft
13453	13453-55010	Gear, Flywheel Ring
13471	95161-30416	Pin, Straight(For Crankshaft)
13471	90119-16004	Bolt(For Crankshaft Pulley Set)
13519	13519-33010	Gear, Oil Pump Drive
13521	13521-33030	Gear Or Sprocket, Crankshaft Timing
19315	19315-33020	Plate, Crank Angle Sensor, No.1
19315	19315-33021	Plate, Crank Angle Sensor, No.1

OEM	Part name	Category
11701-21031-01	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11701-21031-02	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11701-21031-03	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11701-21031-04	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11701-21032-01	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11701-21032-02	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11701-21032-03	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11701-21032-04	Bearing, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11704-21031	Bearing Set, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11704-21032	Bearing Set, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11791-33030	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11792-33030	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
11793-33030	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13011-33050	Ring Set, Piston	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13011-33051	Ring Set, Piston	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13011-33052	Ring Set, Piston	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13011-33053	Ring Set, Piston	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13011-33054	Ring Set, Piston	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13041-33041-01	Bearing, Connecting Rod	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13041-33041-02	Bearing, Connecting Rod	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13041-33041-03	Bearing, Connecting Rod	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N060-A0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N060-B0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N060-C0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N061-A0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N061-B0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N061-C0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N062-A0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N062-B0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13101-0N062-C0	Piston Sub-Assy, W/pin	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13201-39055	Rod Sub-Assy, Connecting	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13204-33041	Bearing Set, Connecting Rod	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13265-21020	Bolt, Connecting Rod	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13401-33020	Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13401-33021	Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13405-33030	Flywheel Sub-Assy	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13407-33050	Damper Sub-Assy, Crankshaft	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13453-55010	Gear, Flywheel Ring	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13519-33010	Gear, Oil Pump Drive	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
13521-33030	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
19315-33020	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
19315-33021	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
90080-52139	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
90119-16004	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
90913-01024	Bolt, Flywheel Setting	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
90999-73147	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)
95161-30416	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([06.2010 - ] (1006- )1NDTV)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 185
Collected: 2026-08-02
