Search › Model › NDE140

NDE140

Toyota COROLLA-ALTIS · 2010 · 3,214 parts · 185 categories

3,214 items

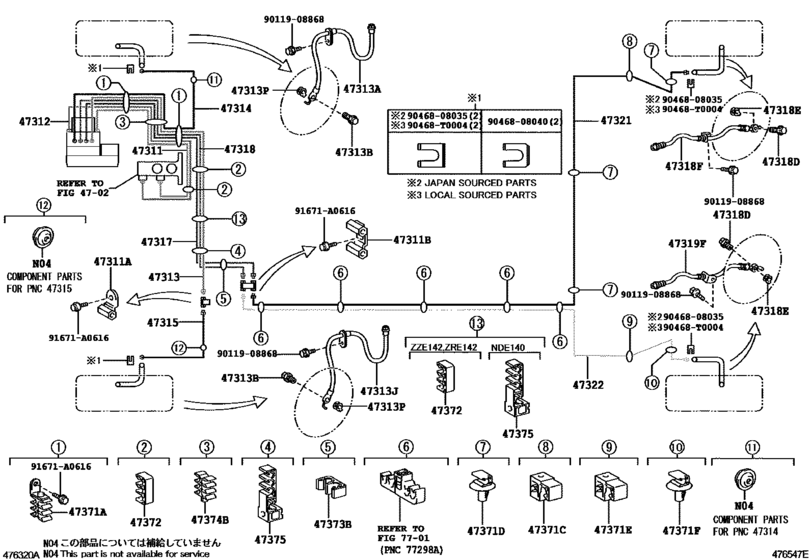

Brake Tube & Clamp ([08.2008 - ] (0808- )IND) 30

#	OEM	Part name
47311	47311-02760	Tube, Front Brake, No.1
47311	90412-10227	Way(For Front Brake Tube)
47311	90412-10255	Way, No.1(For Front Brake Tube)
47312	47312-02640	Tube, Front Brake, No.2
47313	47313-02690	Tube, Front Brake, No.3
47313	90947-T2041	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-T2042	Hose, Flexible, No.2(For Front)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-02600	Tube, Front Brake, No.4
47315	47315-02320	Tube, Front Brake, No.5
47317	47317-02610	Tube, Front Brake, No.7
47318	47318-02630	Tube, Front Brake, No.8
47318	90947-T2047	Hose, Flexible(For Rear Rh)
47319	90947-T2048	Hose, Flexible(For Rear Lh)
47321	47321-02290	Tube, Rear Brake, No.1
47322	47322-02290	Tube, Rear Brake, No.2
47371	47371-12240	Clamp, Brake Tube, No.1
47371	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47371	90949-01D17	Clamp(For Clutch Master Cylinder Tube)
47372	90464-00857	Clamp, Brake Tube, No.1
47373	90464-00904	Clamp, Height Control Tube No.9
47374	90949-01C51	Clamp, Brake Tube, No.1
47375	90949-01D27	Clamp, Brake Tube, No.3
90468	90468-T0004	CLIP
91671	91671-A0616	BOLT FLANGE
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
47311-02760	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47312-02640	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47313-02690	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47314-02600	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47315-02320	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47317-02610	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47318-02630	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47321-02290	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47322-02290	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47371-12240	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90412-10227	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90412-10255	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90464-00904	Clamp, Height Control Tube No.9	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90468-08035	CLIP	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90468-08040	CLIP	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90468-T0004	CLIP	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90947-T2041	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90947-T2042	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90947-T2047	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90947-T2048	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90949-01C51	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90949-01D17	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
90949-01D27	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
91671-A0616	BOLT FLANGE	Brake Tube & Clamp ([08.2008 - ] (0808- )IND)
