NDE140

Toyota COROLLA-ALTIS · 2010 · 3,214 parts · 185 categories

3,214 items

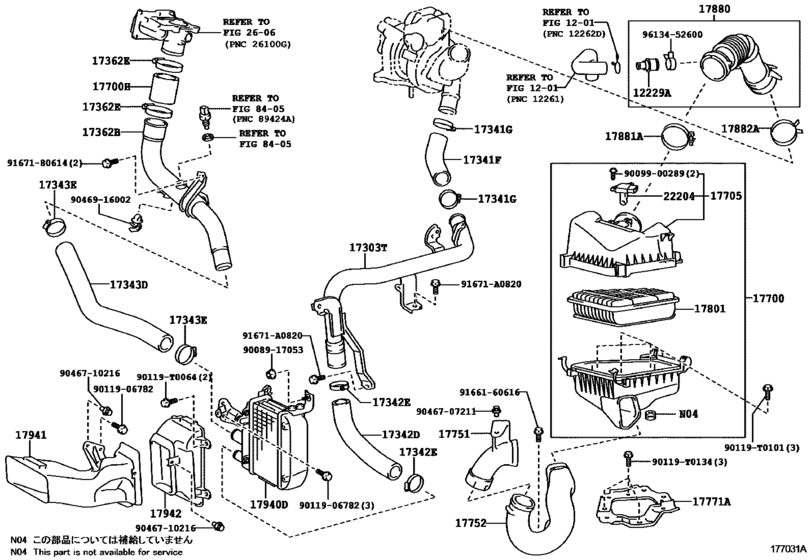

Air Cleaner ([05.2011 - ] (1105- )1NDTV) 42

#	OEM	Part name
12229	12229-21010	Pipe, Ventilation
17303	17303-33030	Pipe Sub-Assy, Air
17303	17303-33050	Pipe Sub-Assy, Air
17341	17341-33070	Hose, Air, No.1
17341	90460-50005	Clamp, Hose - HOSE, NO.2(FOR INTERCOOLER)
17342	17342-33100	Hose, Air, No.2
17342	17342-33140	Hose, Air, No.2
17343	17343-33090	Hose, Air, No.3
17343	17343-33130	Hose, Air, No.3
17343	90460-60006	Clamp, Hose, No.2(For Intercooler)
17362	17362-33060	Tube, Air, No.2
17362	17362-33061	Tube, Air, No.2
17362	90460-63011	Clamp Or Clip(For Air Hose, No.1)
17700	17700-33210	Cleaner Assy, Air
17700	17341-33080	Hose, Air, No.1
17705	17705-33080	Cap Sub-Assy, Air Cleaner
17751	17751-33090	Inlet, Air Cleaner, No.1
17752	17752-33020	Inlet, Air Cleaner, No.2
17771	17771-0N020	Bracket, Air Cleaner
17801	17801-26020	Element Sub-Assy, Air Cleaner Filter
17880	17880-33090	Hose Assy, Air Cleaner
17881	90460-T0010	Clamp(For Intake Air Connector)
17881	96111-10750	Clamp, Hose(For Air Cleaner Duct)
17882	90466-54002	Clamp(For Air Cleaner Hose, No.2) - NO.1)
17940	17940-33040	Intercooler Assy
17940	17940-33060	Intercooler Assy
17941	17941-33020	Guide, Intercooler Air, No.1
17942	17942-33010	Guide, Intercooler Air, No.2
22204	22204-26010	Meter Sub-Assy, Intake Air Flow
90119	90119-T0064	BOLTWWSH
90119	90119-T0101	New Genuine Part
90119	90119-T0134	BOLT WWASHER
91671	91671-A0820	New Genuine Part
9008917053	90089-17053	New Genuine Part
9009900289	90099-00289	SCREW
9011906782	90119-06782	BOLT WWASHER
9046707211	90467-07211	Clip(For Reserve Tank Outlet Hose No.2)
9046710216	90467-10216	Clip, Engine Under Cover, No.2
9046916002	90469-16002	New Genuine Part
9166160616	91661-60616	BOLT
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9613452600	96134-52600	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
12229-21010	Pipe, Ventilation	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17303-33030	Pipe Sub-Assy, Air	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17303-33050	Pipe Sub-Assy, Air	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17341-33070	Hose, Air, No.1	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17341-33080	Hose, Air, No.1	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17342-33100	Hose, Air, No.2	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17342-33140	Hose, Air, No.2	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17343-33090	Hose, Air, No.3	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17343-33130	Hose, Air, No.3	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17362-33060	Tube, Air, No.2	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17362-33061	Tube, Air, No.2	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17700-33210	Cleaner Assy, Air	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17705-33080	Cap Sub-Assy, Air Cleaner	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17751-33090	Inlet, Air Cleaner, No.1	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17752-33020	Inlet, Air Cleaner, No.2	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17771-0N020	Bracket, Air Cleaner	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17801-26020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17880-33090	Hose Assy, Air Cleaner	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17940-33040	Intercooler Assy	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17940-33060	Intercooler Assy	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17941-33020	Guide, Intercooler Air, No.1	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
17942-33010	Guide, Intercooler Air, No.2	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
22204-26010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90089-17053	New Genuine Part	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90099-00289	SCREW	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90119-06782	BOLT WWASHER	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90119-T0064	BOLTWWSH	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90119-T0101	New Genuine Part	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90119-T0134	BOLT WWASHER	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90460-50005	Clamp, Hose - HOSE, NO.2(FOR INTERCOOLER)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90460-60006	Clamp, Hose, No.2(For Intercooler)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90460-63011	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90460-T0010	Clamp(For Intake Air Connector)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90466-54002	Clamp(For Air Cleaner Hose, No.2) - NO.1)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90467-07211	Clip(For Reserve Tank Outlet Hose No.2)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90467-10216	Clip, Engine Under Cover, No.2	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
90469-16002	New Genuine Part	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
91661-60616	BOLT	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
91671-A0820	New Genuine Part	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
96111-10750	Clamp, Hose(For Air Cleaner Duct)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
96134-52600	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([05.2011 - ] (1105- )1NDTV)
