NCZ20

Toyota RAUM · 2003 · 4,426 parts · 192 categories

← Back to categories

4,426 items

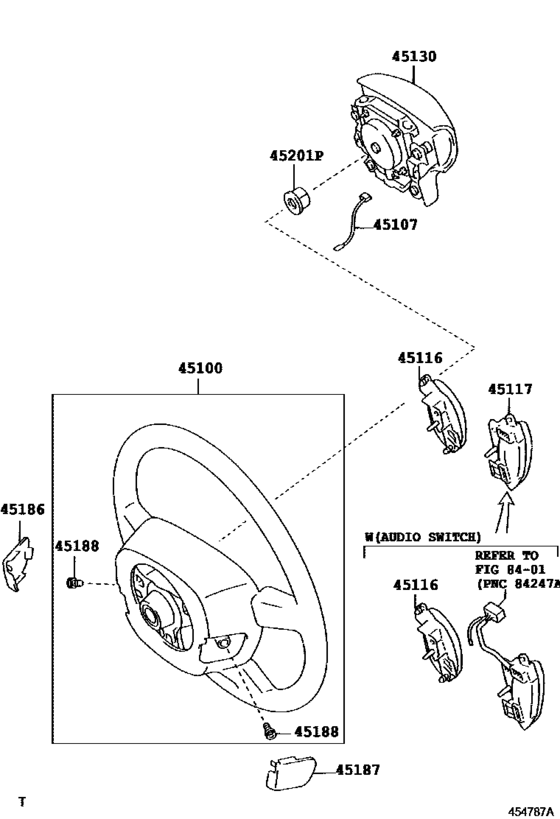

Steering Wheel ([12.2006 - ] 4-SPOKE (0612- )) 15

#	OEM	Part name
45100	45100-46010-B0	Wheel Assy, Steering
45100	45100-46010-E0	Wheel Assy, Steering
45100	45100-46020-B0	Wheel Assy, Steering
45100	45100-46020-E0	Wheel Assy, Steering
45107	45107-46010	Wire Sub-Assy, Horn Button
45116	45116-46010	Ornament, Steering Wheel, No.1
45117	45117-46010	Ornament, Steering Wheel, No.2
45130	45130-46030-B0	Button Assy, Horn
45130	45130-46030-E0	Button Assy, Horn
45186	45186-46010-B0	Cover, Steering Wheel, Lower No.2
45186	45186-46010-E0	Cover, Steering Wheel, Lower No.2
45187	45187-46010-B0	Cover, Steering Wheel, Lower No.3
45187	45187-46010-E0	Cover, Steering Wheel, Lower No.3
45188	45188-60010	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set

OEM	Part name	Category
45100-46010-B0	Wheel Assy, Steering	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45100-46010-E0	Wheel Assy, Steering	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45100-46020-B0	Wheel Assy, Steering	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45100-46020-E0	Wheel Assy, Steering	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45107-46010	Wire Sub-Assy, Horn Button	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45116-46010	Ornament, Steering Wheel, No.1	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45117-46010	Ornament, Steering Wheel, No.2	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45130-46030-B0	Button Assy, Horn	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45130-46030-E0	Button Assy, Horn	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45186-46010-B0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45186-46010-E0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45187-46010-B0	Cover, Steering Wheel, Lower No.3	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45187-46010-E0	Cover, Steering Wheel, Lower No.3	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
45188-60010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([12.2006 - ] 4-SPOKE (0612- ))
