Search › Model › NCZ20

NCZ20

Toyota RAUM · 2003 · 4,426 parts · 192 categories

← Back to categories

4,426 items

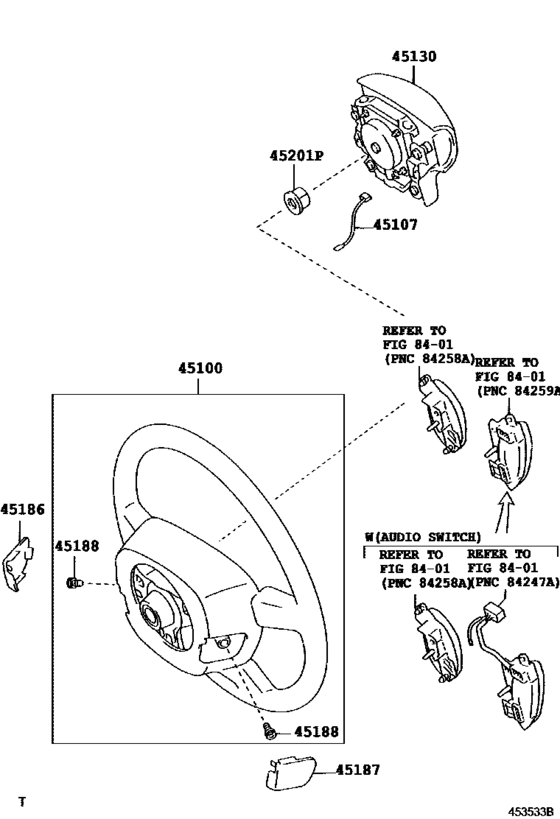

Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612)) 13

#	OEM	Part name
45100	45100-46010-B0	Wheel Assy, Steering
45100	45100-46010-E0	Wheel Assy, Steering
45100	45100-46020-B0	Wheel Assy, Steering
45100	45100-46020-E0	Wheel Assy, Steering
45107	45107-46010	Wire Sub-Assy, Horn Button
45130	45130-46030-B0	Button Assy, Horn
45130	45130-46030-E0	Button Assy, Horn
45186	45186-46010-B0	Cover, Steering Wheel, Lower No.2
45186	45186-46010-E0	Cover, Steering Wheel, Lower No.2
45187	45187-46010-B0	Cover, Steering Wheel, Lower No.3
45187	45187-46010-E0	Cover, Steering Wheel, Lower No.3
45188	45188-60010	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set

OEM	Part name	Category
45100-46010-B0	Wheel Assy, Steering	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45100-46010-E0	Wheel Assy, Steering	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45100-46020-B0	Wheel Assy, Steering	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45100-46020-E0	Wheel Assy, Steering	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45107-46010	Wire Sub-Assy, Horn Button	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45130-46030-B0	Button Assy, Horn	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45130-46030-E0	Button Assy, Horn	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45186-46010-B0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45186-46010-E0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45187-46010-B0	Cover, Steering Wheel, Lower No.3	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45187-46010-E0	Cover, Steering Wheel, Lower No.3	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
45188-60010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([04.2003 - 12.2006] 4-SPOKE (0304-0612))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 192
Collected: 2026-08-04
