Search › Model › NCZ20

NCZ20

Toyota RAUM · 2003 · 4,426 parts · 192 categories

4,426 items

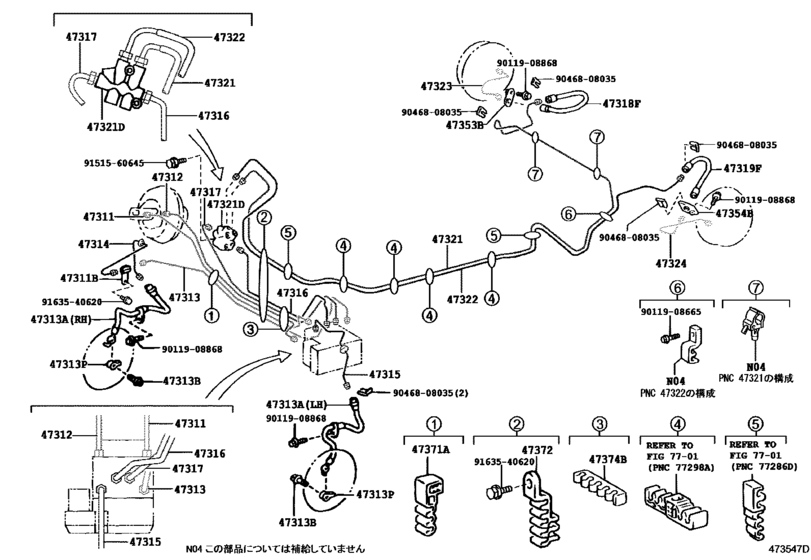

Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20) 40

#	OEM	Part name
47311	47311-46040	Tube, Front Brake, No.1
47311	47311-52140	Tube, Front Brake, No.1
47311	90412-10235	Way, No.1(For Front Brake Tube)
47312	47312-46040	Tube, Front Brake, No.2
47312	47312-52120	Tube, Front Brake, No.2
47313	47313-52070	Tube, Front Brake, No.3
47313	47313-52100	Tube, Front Brake, No.3
47313	90947-02D76	Hose, Flexible, No.1(For Front)
47313	90947-02D77	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-52011	Tube, Front Brake, No.4
47315	47315-52070	Tube, Front Brake, No.5
47315	47315-52071	Tube, Front Brake, No.5
47315	47315-52110	Tube, Front Brake, No.5
47316	47316-52050	Tube, Front Brake, No.6
47316	47316-52090	Tube, Front Brake, No.6
47317	47317-52050	Tube, Front Brake, No.7
47317	47317-52090	Tube, Front Brake, No.7
47318	90947-02C30	Hose, Clutch
47321	47321-46050	Tube, Rear Brake, No.1
47321	47321-52042	Tube, Rear Brake, No.1
47321	47321-52190	Tube, Rear Brake, No.1
47321	90904-12088	Way, No.1(For Rear Brake Tube)
47322	47322-46050	Tube, Rear Brake, No.2
47322	47322-52042	Tube, Rear Brake, No.2
47322	47322-52110	Tube, Rear Brake, No.2
47323	47323-52090	Tube, Rear Brake, No.3
47324	47324-52080	Tube, Rear Brake, No.4
47353	47353-52010	Bracket, Flexible Hose, No.3
47354	47354-52010	Bracket, Flexible Hose, No.4
47371	47371-52010	Clamp, Brake Tube, No.1
47372	47372-52010	Clamp, Brake Tube, No.2
47374	90949-01A18	Clamp, Brake Tube, No.3
9011908665	90119-08665	BOLT
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9151560645	91515-60645	New Genuine Part
9163540620	91635-40620	New Genuine Part

OEM	Part name	Category
47311-46040	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47311-52140	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47312-46040	Tube, Front Brake, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47312-52120	Tube, Front Brake, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47313-52070	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47313-52100	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47314-52011	Tube, Front Brake, No.4	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47315-52070	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47315-52071	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47315-52110	Tube, Front Brake, No.5	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47316-52050	Tube, Front Brake, No.6	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47316-52090	Tube, Front Brake, No.6	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47317-52050	Tube, Front Brake, No.7	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47317-52090	Tube, Front Brake, No.7	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47321-46050	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47321-52042	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47321-52190	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47322-46050	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47322-52042	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47322-52110	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47323-52090	Tube, Rear Brake, No.3	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47324-52080	Tube, Rear Brake, No.4	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47353-52010	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47354-52010	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47371-52010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47372-52010	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90119-08665	BOLT	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90412-10235	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90468-08035	CLIP	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90904-12088	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90947-02C30	Hose, Clutch	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90947-02D76	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90947-02D77	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
90949-01A18	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
91515-60645	New Genuine Part	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)
91635-40620	New Genuine Part	Brake Tube & Clamp ([04.2003 - ] (0304- )NCZ20)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 192
Collected: 2026-08-04
