Search › Model › NCP96

NCP96

Toyota BELTA · 2005 · 3,781 parts · 181 categories

3,781 items

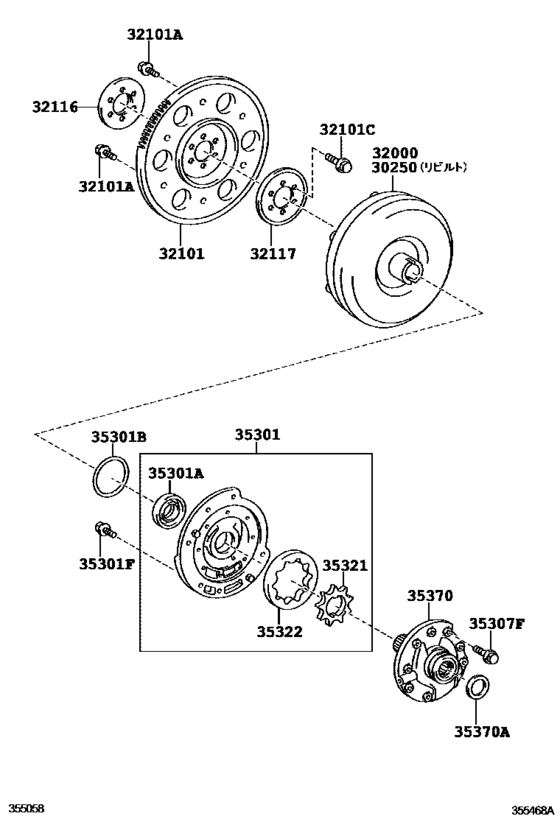

Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96) 29

#	OEM	Part name
30250	30250-52110	Converter Assy, Torque, Rebuilt
32000	32000-52110	Converter Assy, Torque
32101	32101-52021	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08107	Bolt(For Drive Plate & Torque Converter Setting)
32101	90109-08113	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08269	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32101	90105-A0022	Bolt, Hexagon(For Drive Plate Setting)
32116	32116-52030	Spacer, Drive Plate, Front
32117	32117-52030	Spacer, Drive Plate, Rear
35301	35035-52030	Body Sub-Assy, Front Oil Pump
35301	90311-38075	Seal, Oil (For Transaxle Housing)
35301	90301-99123	Ring, O (For Front Oil Pump Body)
35301	90105-08376	Bolt (For Front Oil Pump Setting)
35307	90119-06559	Bolt (For Stator Shaft)
35321	35321-52010	Gear, Front Oil Pump Drive
35321	35321-52020	Gear, Front Oil Pump Drive
35321	35321-52030	Gear, Front Oil Pump Drive
35321	35321-52040	Gear, Front Oil Pump Drive
35321	35321-52050	Gear, Front Oil Pump Drive
35322	35322-52010	Gear, Front Oil Pump Driven
35322	35322-52020	Gear, Front Oil Pump Driven
35322	35322-52030	Gear, Front Oil Pump Driven
35322	35322-52040	Gear, Front Oil Pump Driven
35322	35322-52050	Gear, Front Oil Pump Driven
35370	35370-52010	Shaft Assy, Stator
35370	90374-32007	Bearing, Thrust Needle Roller(For Stator Shaft)
35370	90374-32008	Bearing, Thrust Needle Roller(For Stator Shaft)

OEM	Part name	Category
30250-52110	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
32000-52110	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
32101-52021	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
32116-52030	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
32117-52030	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35035-52030	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35321-52010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35321-52020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35321-52030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35321-52040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35321-52050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35322-52010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35322-52020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35322-52030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35322-52040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35322-52050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
35370-52010	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90105-08376	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90105-A0022	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90109-08107	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90109-08113	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90119-06559	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90119-08269	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90301-99123	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90311-38075	Seal, Oil (For Transaxle Housing)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90374-32007	Bearing, Thrust Needle Roller(For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
90374-32008	Bearing, Thrust Needle Roller(For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([11.2005 - ] U441F (0511- )NCP96)
