NCP96

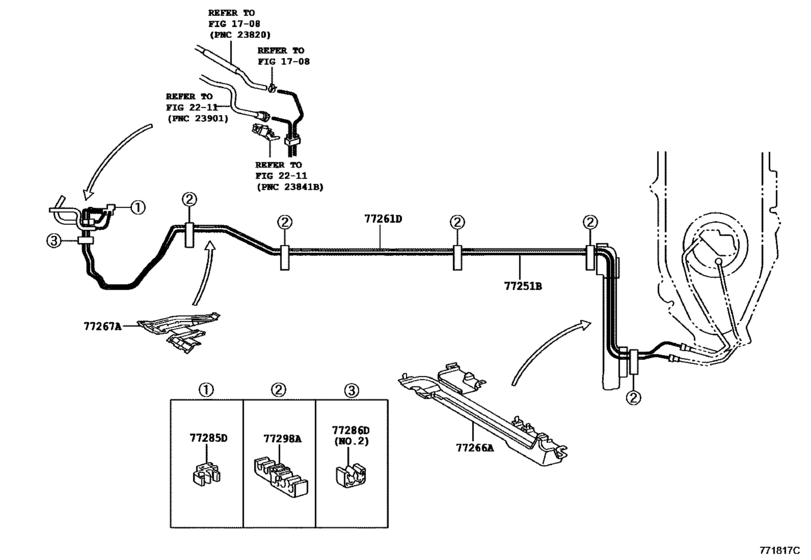

Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) 8
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-52270 | Tube, Fuel Main |
| 77261 | 77261-52270 | Tube, Fuel Tank To Canister |
| 77266 | 77266-52070 | Protector, Fuel Tube, No.1 |
| 77266 | 77266-52071 | Protector, Fuel Tube, No.1 |
| 77267 | 77267-52050 | Protector, Fuel Tube, No.2 |
| 77285 | 77285-52060 | Clamp, Fuel Tube, No.1 |
| 77286 | 77286-52100 | Clamp, Fuel Tube, No.2 |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 77251-52270 | Tube, Fuel Main | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
| 77261-52270 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
| 77266-52070 | Protector, Fuel Tube, No.1 | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
| 77266-52071 | Protector, Fuel Tube, No.1 | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
| 77267-52050 | Protector, Fuel Tube, No.2 | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
| 77285-52060 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
| 77286-52100 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([11.2005 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0511- )NCP96) |
