NCP96

Toyota BELTA · 2005 · 3,781 parts · 181 categories
NCP96 ×

← Back to categories

3,781 items

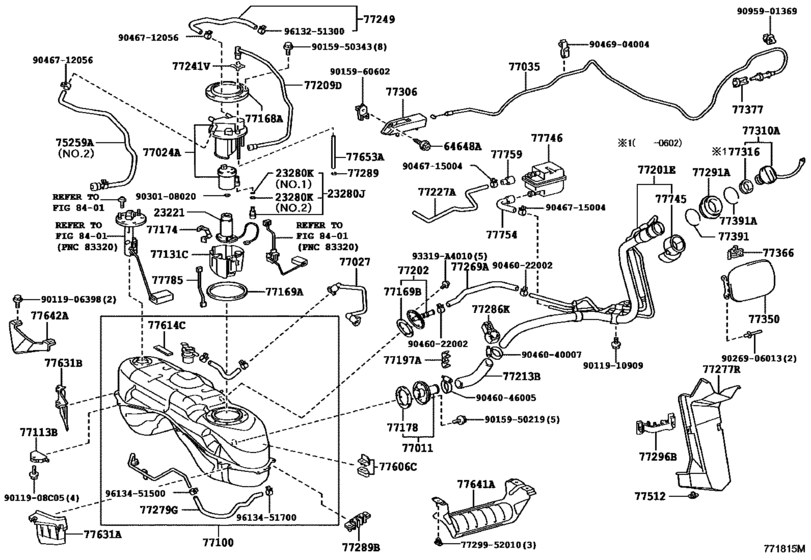

Fuel Tank & Tube ([11.2005 - 01.2008] ﾌｭｰｴﾙ ﾀﾝｸ (0511-0801)NCP96) 101
#OEMPart name
23221 23220-21141 Pump, Fuel
23221 23220-21142 Pump, Fuel
23221 23220-21220 Pump, Fuel
23221 23220-21221 Pump, Fuel
23221 77785-52110 Harness, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
64648 64648-12020 Grommet, Luggage Door Lock Opener
64648 64648-32020 Grommet, Luggage Door Lock Opener
75259 77259-52050 Hose, Fuel
77011 77011-28010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77024 77024-52140 Plate Sub-Assy, Fuel Suction
77024 77024-52141 Plate Sub-Assy, Fuel Suction
77024 77024-52190 Plate Sub-Assy, Fuel Suction
77024 77024-52191 Plate Sub-Assy, Fuel Suction
77027 77027-52140 Tube Sub-Assy, Fuel Evaporation, No.2
77035 77035-52240 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-52160 Tank Assy, Fuel
77100 77001-52161 Tank Assy, Fuel
77113 77113-52010 Plate, Fuel Tank Side
77131 77131-52081 Sub-Tank, Fuel, No.1
77131 77131-52082 Sub-Tank, Fuel, No.1
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77169 77169-14020 Gasket, Fuel Tank Vent
77174 77174-52050 Support, Fuel Suction, No.1
77174 77174-52070 Support, Fuel Suction, No.1
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77197 77197-52010 Clamp, Evaporation Vent Tube, No.2
77201 77201-52240 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-52440 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-52241 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-52520 Pipe Sub-Assy, Fuel Tank Filler
77201 77201-52242 Pipe Sub-Assy, Fuel Tank Filler
77202 77203-52020 Tube Sub-Assy, Breather
77209 77209-52110 Tube Sub-Assy, Fuel Tank Main
77213 77213-52150 Hose, Fuel Tank To Filler Pipe
77227 77226-52071 Tube, Fuel Tank Evaporation Vent
77227 77227-52040 Tube, Fuel Tank Evaporation Vent
77241 77241-32060 Clip, Tube Joint
77249 77249-52040 Hose, Fuel Emission
77269 77269-52070 Hose, Fuel Tank Breather
77277 77277-52030 Protector, Fuel Tank Filler Pipe
77277 77277-52031 Protector, Fuel Tank Filler Pipe
77279 77279-52030 Hose, Fuel, No.2
77286 77286-52081 Clamp, Fuel Tube, No.2
77289 77289-52110 Holder, Fuel Tank Pipe Setting
77289 77289-52100 Clamp, Fuel Tube, No.3
77291 77291-52120 Shield, Fuel Tank Filler Pipe
77296 77296-52020 Support, Fuel Tube Protector, No.1
77306 64606-33020 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-52030 Lever Sub-Assy, Fuel Lid Lock Open
77306 77306-52050 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52020 Gasket, Fuel Tank Cap
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-52150 Lid Assy, Fuel Filler Opening
77366 77360-30070 Spring, Fuel Filler Opening Lid Hinge
77366 77360-0R010 Spring Assy, Charging Port Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-60030 Ring, Fuel Inlet Box
77512 77512-35140 Bracket, Fuel Tank
77606 77607-52010 Protector Sub-Assy, Fuel Tank
77614 77614-52020 Seal, Fuel Tank Cover
77631 77631-52040 Protector, Fuel Tank, No.3
77631 77632-52010 Protector, Fuel Tank, No.4
77641 77641-52080 Protector, Fuel Tank, No.1
77641 77641-52100 Protector, Fuel Tank, No.1
77642 77642-52060 Protector, Fuel Tank, No.2
77653 77652-52040 Cushion, Fuel Tank, No.2
77745 77745-52030 Filter, Charcoal Canister, No.1
77746 77746-33010 Filter, Charcoal Canister, No.2
77754 77754-52030 Hose, Charcoal Canister Outlet, No.1
77759 77759-52010 Hose, Charcoal Canister
77785 77785-52060 Harness, Fuel Pump
93319 93319-A4010 SCREW WWASHER
9011908 90119-08C05 BOLT WWASHER
7729952010 77299-52010 Clamp, Fuel Tube, No.5
9011906398 90119-06398 BOLT WWASHER
9011910909 90119-10909 Bolt
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9015960602 90159-60602 SCREW
9026906013 90269-06013 RIVET
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046715004 90467-15004 Clip(For Ventilation Hose No.2)
9046904004 90469-04004 Clamp (For Fuel Lid Lock Control Cable)
9095901369 90959-01369 Clamp, Hood Lock Control Cable
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613451500 96134-51500 Clip(For Ventilation Hose No.2)
9613451500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
9613451700 96134-51700 Clip Or Clamp(For Ventilation Hose)
