Search › Model › NCP93

NCP93

Toyota YARIS-ECHO-VIOS-LIMO · 2006 · 3,504 parts · 177 categories

3,504 items

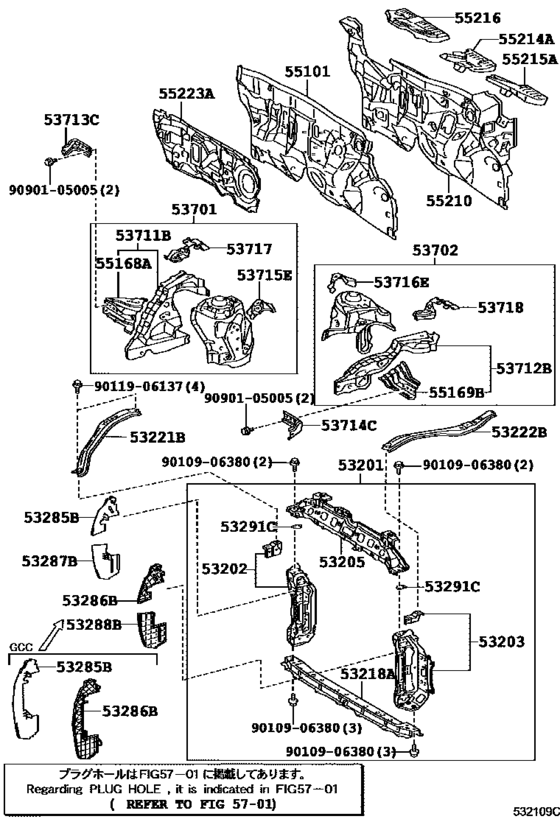

Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD) 37

#	OEM	Part name
53201	53201-52230	Support Sub-Assy, Radiator
53202	53202-52902	Support Sub-Assy, Radiator, Rh
53202	53202-52909	Support Sub-Assy, Radiator, Rh
53203	53203-52902	Support Sub-Assy, Radiator, Lh
53203	53203-52907	Support Sub-Assy, Radiator, Lh
53205	53205-52100	Support Sub-Assy, Radiator, Upper
53218	53028-52070	Support Sub-Assy, Radiator, Lower
53221	53221-52020	Brace, Radiator Support Apron, Rh
53222	53222-52020	Brace, Radiator Support Apron, Lh
53285	53285-52240	Seal, Radiator Side Air, No.1
53286	53286-52180	Seal, Radiator Side Air, No.2
53291	53291-52070	Seal, Radiator Support To Frame
53701	53701-52180	Apron Sub-Assy, Front Fender, Rh
53702	53702-52180	Apron Sub-Assy, Front Fender, Lh
53711	53707-52030	Apron Sub-Assy, Fender Side, Rh
53711	53707-52060	Apron Sub-Assy, Fender Side, Rh
53712	53708-52030	Apron Sub-Assy, Fender Side, Lh
53712	53708-52060	Apron Sub-Assy, Fender Side, Lh
53713	53713-52030	Extension, Front Fender Apron, Front Rh
53714	53714-52040	Extension, Front Fender Apron, Front Lh
53715	53715-52030	Extension, Front Fender Apron, Rear Rh
53716	53716-52030	Extension, Front Fender Apron, Rear Lh
53717	53717-52100	Plate, Fender Apron, Rh
53718	53718-52100	Plate, Fender Apron, Lh
55101	55101-52500	Panel Sub-Assy, Dash
55101	55101-52490	Panel Sub-Assy, Dash
55168	55168-52130	Bracket, Front Fender Mounting, Rh
55169	55169-52130	Bracket, Front Fender Mounting, Lh
55210	55210-52230	Insulator Assy, Dash Panel
55214	55214-52140	Pad, Dash Panel Insulator, No.2
55215	55215-52110	Pad, Dash Panel Insulator, No.3
55216	55216-52021	Pad, Dash Panel Insulator, No.4
55223	55223-52090	Insulator, Dash Panel, Outer
55223	55223-52110	Insulator, Dash Panel, Outer
9010906380	90109-06380	BOLT
9011906137	90119-06137	BOLT
9090105005	90901-05005	New Genuine Part

OEM	Part name	Category
53028-52070	Support Sub-Assy, Radiator, Lower	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53201-52230	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53202-52902	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53202-52909	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53203-52902	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53203-52907	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53205-52100	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53221-52020	Brace, Radiator Support Apron, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53222-52020	Brace, Radiator Support Apron, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53285-52240	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53286-52180	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53291-52070	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53701-52180	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53702-52180	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53707-52030	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53707-52060	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53708-52030	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53708-52060	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53713-52030	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53714-52040	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53715-52030	Extension, Front Fender Apron, Rear Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53716-52030	Extension, Front Fender Apron, Rear Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53717-52100	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
53718-52100	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55101-52490	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55101-52500	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55168-52130	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55169-52130	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55210-52230	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55214-52140	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55215-52110	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55216-52021	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55223-52090	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
55223-52110	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
90109-06380	BOLT	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
90119-06137	BOLT	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
90901-05005	New Genuine Part	Front Fender Apron & Dash Panel ([01.2006 - ] (0601- )LHD)
