Search › Model › NCP93

NCP93

Toyota YARIS-ECHO-VIOS-LIMO · 2006 · 3,504 parts · 177 categories

3,504 items

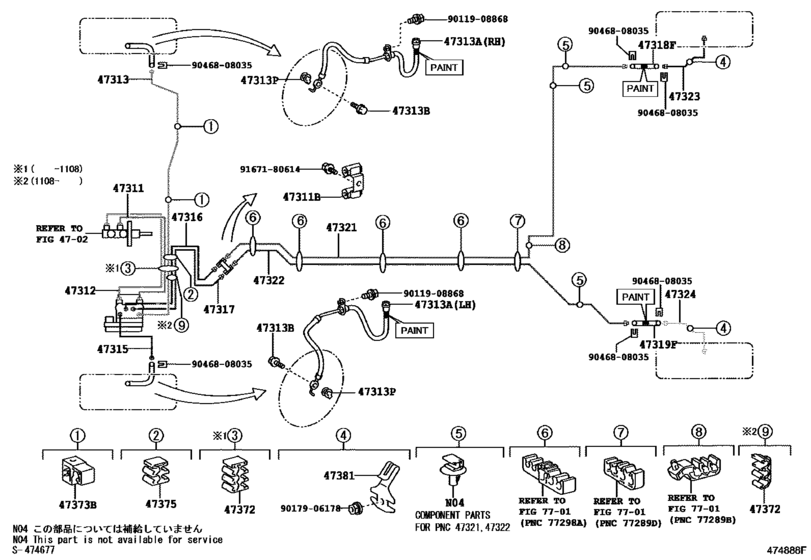

Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD) 38

#	OEM	Part name
47311	47311-52240	Tube, Front Brake, No.1
47311	47311-52390	Tube, Front Brake, No.1
47311	90412-10260	Way, No.1(For Front Brake Tube)
47312	47312-52220	Tube, Front Brake, No.2
47312	47312-52350	Tube, Front Brake, No.2
47313	47313-52130	Tube, Front Brake, No.3
47313	47313-52190	Tube, Front Brake, No.3
47313	90947-02E07	Hose, Flexible, No.1(For Front)
47313	90947-02E08	Hose, Flexible, No.1(For Front)
47313	90947-02G34	Hose, Flexible, No.1(For Front)
47313	90947-02G35	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47315	47315-52160	Tube, Front Brake, No.5
47315	47315-52210	Tube, Front Brake, No.5
47316	47316-52120	Tube, Front Brake, No.6
47316	47316-52180	Tube, Front Brake, No.6
47317	47317-52120	Tube, Front Brake, No.7
47317	47317-52180	Tube, Front Brake, No.7
47318	90947-02E09	Hose, Clutch
47318	90947-02G36	Hose, Flexible(For Rear Rh)
47319	90947-02E10	Hose, Flexible(For Rear Lh)
47319	90947-02G38	Hose, Flexible(For Rear Lh)
47321	47321-52320	Tube, Rear Brake, No.1
47322	47322-52300	Tube, Rear Brake, No.2
47323	47323-52100	Tube, Rear Brake, No.3
47324	47324-52090	Tube, Rear Brake, No.4
47372	90464-00868	Clamp, Brake Tube, No.1
47372	90949-01969	Clamp, Brake Tube, No.6
47372	90080-46365	Clamp, Brake Tube, No.5
47373	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47375	90464-00883	Clamp, Brake Tube, No.7
47381	47381-52020	Bracket, Brake Tube Clamp No.1
9011908868	90119-08868	BOLT WWASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
47311-52240	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47311-52390	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47312-52220	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47312-52350	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47313-52130	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47313-52190	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47315-52160	Tube, Front Brake, No.5	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47315-52210	Tube, Front Brake, No.5	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47316-52120	Tube, Front Brake, No.6	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47316-52180	Tube, Front Brake, No.6	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47317-52120	Tube, Front Brake, No.7	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47317-52180	Tube, Front Brake, No.7	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47321-52320	Tube, Rear Brake, No.1	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47322-52300	Tube, Rear Brake, No.2	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47323-52100	Tube, Rear Brake, No.3	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47324-52090	Tube, Rear Brake, No.4	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47381-52020	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90179-06178	Nut (For Rear Wiper Arm Setting)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90464-00868	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90464-00883	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90468-08035	CLIP	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02E07	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02E08	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02E09	Hose, Clutch	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02E10	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02G34	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02G35	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02G36	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90947-02G38	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([01.2006 - ] W(ABS) (0601- )LHD)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 177
Collected: 2026-08-04
