Search › Model › NCP92
NCP92

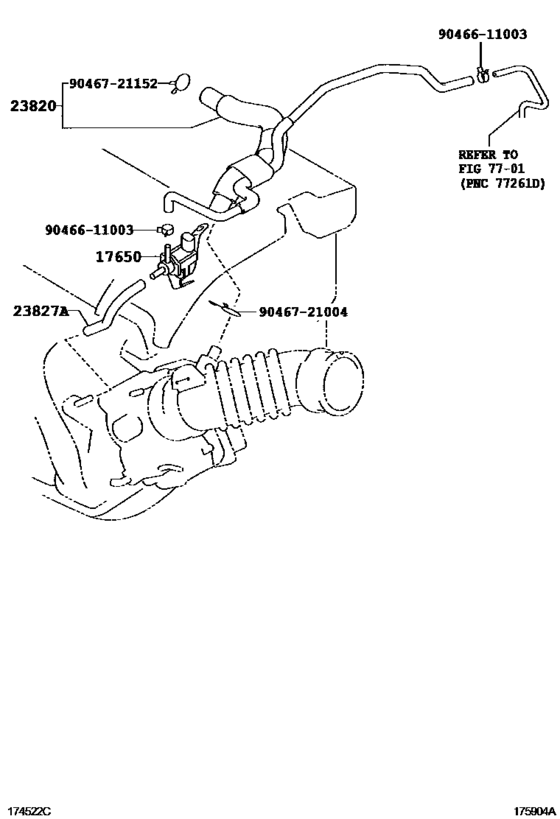

Vacuum Piping ([02.2008 - ] (0802- )2NZFE) 10
| # | OEM | Part name |
|---|---|---|
| 17650 | 25860-21070 | Valve Assy, Vacuum Switching |
| 23820 | 23820-0M030 | Hose Assy, Fuel Vapor Feed |
| 23820 | 23820-21100 | Hose Assy, Fuel Vapor Feed |
| 23820 | 23820-21101 | Hose Assy, Fuel Vapor Feed |
| 23827 | 23827-0M070 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 23827-21150 | Hose, Fuel Vapor Feed, No.2 |
| 9046611003 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 9046611003 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 9046721004 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 9046721152 | 90467-21152 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 23820-0M030 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 23820-21100 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 23820-21101 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 23827-0M070 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 23827-21150 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 25860-21070 | Valve Assy, Vacuum Switching | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
| 90467-21152 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([02.2008 - ] (0802- )2NZFE) |
