Search › Model › NCP92
NCP92

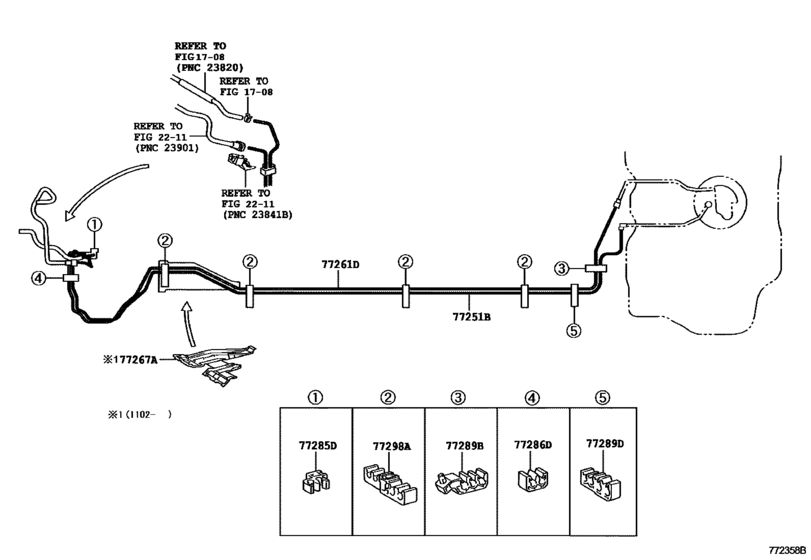

Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) 7
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-0D150 | Tube, Fuel Main |
| 77261 | 77261-0D140 | Tube, Fuel Tank To Canister |
| 77267 | 77267-52050 | Protector, Fuel Tube, No.2 |
| 77285 | 77285-52060 | Clamp, Fuel Tube, No.1 |
| 77286 | 77286-52100 | Clamp, Fuel Tube, No.2 |
| 77289 | 77289-52060 | Clamp, Fuel Tube, No.3 |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 77251-0D150 | Tube, Fuel Main | Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) |
| 77261-0D140 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) |
| 77267-52050 | Protector, Fuel Tube, No.2 | Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) |
| 77285-52060 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) |
| 77286-52100 | Clamp, Fuel Tube, No.2 | Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) |
| 77289-52060 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([02.2007 - ] FUEL TUBE (0702- )) |
