Search › Model › NCP92

NCP92

Toyota VIOS · 2007 · 3,840 parts · 308 categories

3,840 items

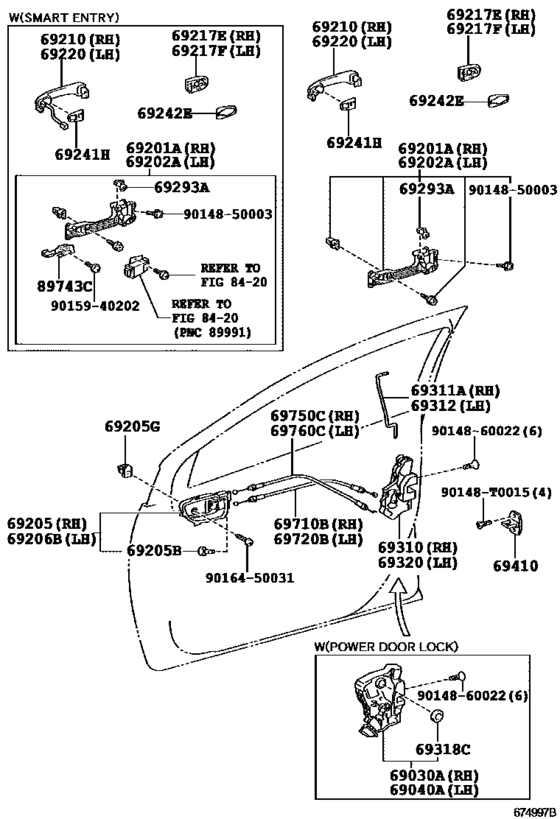

Front Door Lock & Handle ([02.2007 - ] (0702- )) 36

#	OEM	Part name
69030	69030-0D290	Lock Assy, Front Door W/motor, Rh
69040	69040-02300	Lock Assy, Front Door, Lh
69201	69201-0D060	Frame Sub-Assy, Front Door Outside Handle, Rh
69201	69201-52040	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-0D030	Frame Sub-Assy, Front Door Outside Handle, Lh
69202	69202-52020	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-0D170-B0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-52140-B0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04027	Cushion(For Front Door Inside Handle)
69205	69299-52010	Grommet(For Front Door Inside Handle)
69206	69206-0D170-B0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-52140-B0	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-06905	Handle Assy, Front Door, Outside Rh
69210	69211-12903	Handle Assy, Front Door, Outside Rh
69217	69217-06908	Cover, Front Door Outside Handle, Rh
69217	69217-12020	Cover, Front Door Outside Handle
69241	69241-06020	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT
69241	69241-42020	Pad, Front Door Outside Handle, Rh
69242	69242-06020	Pad, Front Door Outside Handle, Rear
69242	69242-42010	Pad, Front Door Outside Handle, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69293	69293-33010	Snap, Front Door Outside Handle
69293	69293-33020	Snap, Front Door Outside Handle
69311	69311-0D100	Rod, Front Door Lock Open, Rh
69312	69312-0D100	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69410	69410-0K010	Plate Assy, Front Door Lock Striker
69710	69710-0D120	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-0D080	Cable Assy, Front Door Inside Locking, Rh
90148	90148-T0015	SCREWHEXALOBULAR
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9015940202	90159-40202	SCREW WWASHER
9016450031	90164-50031	SCREW BINDING

OEM	Part name	Category
69030-0D290	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69040-02300	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69201-0D060	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69201-52040	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69202-0D030	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69202-52020	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69205-0D170-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69205-52140-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69206-0D170-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69206-52140-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69210-06905	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69211-12903	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69217-06908	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69217-12020	Cover, Front Door Outside Handle	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69241-06020	Pad, Rear Door Outside Handle, Front - FRONT DOOR OUTSIDE HANDLE, FRONT	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69241-42020	Pad, Front Door Outside Handle, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69242-06020	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69242-42010	Pad, Front Door Outside Handle, Lh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69293-33010	Snap, Front Door Outside Handle	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69293-33020	Snap, Front Door Outside Handle	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69299-52010	Grommet(For Front Door Inside Handle)	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69311-0D100	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69312-0D100	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69410-0K010	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69710-0D120	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
69750-0D080	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([02.2007 - ] (0702- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([02.2007 - ] (0702- ))
90148-60022	BOLT	Front Door Lock & Handle ([02.2007 - ] (0702- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([02.2007 - ] (0702- ))
90148-T0015	SCREWHEXALOBULAR	Front Door Lock & Handle ([02.2007 - ] (0702- ))
90159-40202	SCREW WWASHER	Front Door Lock & Handle ([02.2007 - ] (0702- ))
90164-50031	SCREW BINDING	Front Door Lock & Handle ([02.2007 - ] (0702- ))
90541-04027	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([02.2007 - ] (0702- ))

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 308
Collected: 2026-08-04
