Search › Model › NCP91

NCP91

Toyota VITZ · 2005 · 2,922 parts · 172 categories

2,922 items

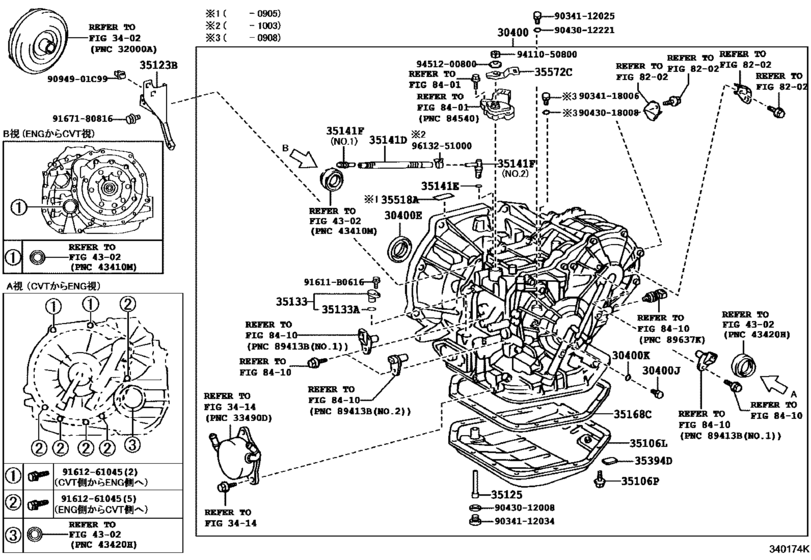

Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC) 32

#	OEM	Part name
30400	30400-52110	Transaxle Assy, Continuously Variable
30400	90311-45027	Seal, Type T Oil(For Cvt Oil Pump)
30400	90341-18061	Plug, Hole (CVT TC)
30400	90430-18008	Gasket
30400	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-52060	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-52061	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35123	35123-52021	Skirt,transmission Breather
35125	35125-52140	Tube, Transmission Oil Filler, No.1
35133	35133-52010	Plug, Transmission Oil Filler
35133	90301-11001	Ring, O (For Transmission Oil Filler Plug)
35141	90447-11055	Hose(For Breather Plug)
35141	90301-08015	Ring, O (For Breather Plug)
35141	90930-03149	Plug Sub-Assy, Breather(For Transmission)
35141	90930-03156	Plug, Breather, No.1 (Atm)
35168	35168-52040	Gasket, Transaxle Oil Pan(Cvt)
35394	35394-48010	Magnet, Oil Cleaner (For Transmission)
35518	35518-63010	Label, Automatic Transaxle Information, No.2
35572	35572-52070	Lever, Transmission Control Shaft
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
9094901	90949-01C99	Clip, Radiator Hose, No.5
9034112025	90341-12025	Plug, No.4
9034112034	90341-12034	Plug Sub-Assy, Drain (Atm)
9034118006	90341-18006	Plug (No magnet)
9043012008	90430-12008	Gasket (For Shift Inter Lock Plate)
9043012221	90430-12221	Gasket
9161261045	91612-61045	Bolt(For Transaxle & Engine Setting)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9613251000	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
30400-52110	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35106-52060	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35106-52061	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35123-52021	Skirt,transmission Breather	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35125-52140	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35133-52010	Plug, Transmission Oil Filler	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35168-52040	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35394-48010	Magnet, Oil Cleaner (For Transmission)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35518-63010	Label, Automatic Transaxle Information, No.2	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
35572-52070	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90301-08015	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90301-11001	Ring, O (For Transmission Oil Filler Plug)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90311-45027	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90341-12025	Plug, No.4	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90341-12034	Plug Sub-Assy, Drain (Atm)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90341-18006	Plug (No magnet)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90341-18061	Plug, Hole (CVT TC)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90430-12008	Gasket (For Shift Inter Lock Plate)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90430-12221	Gasket	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90430-18008	Gasket	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90447-11055	Hose(For Breather Plug)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90930-03149	Plug Sub-Assy, Breather(For Transmission)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90930-03156	Plug, Breather, No.1 (Atm)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
90949-01C99	Clip, Radiator Hose, No.5	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
91611-B0616	Bolt(For Transaxle Case Receiver)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
91612-61045	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
94110-50800	Nut(For Repair Actuator Set)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transaxle Assy(Cvt) ([01.2005 - ] K210 (0501- )NCP91..CVFC)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 172
Collected: 2026-08-04
