Search › Model › NCP91

NCP91

Toyota VITZ · 2005 · 2,922 parts · 172 categories

← Back to categories

2,922 items

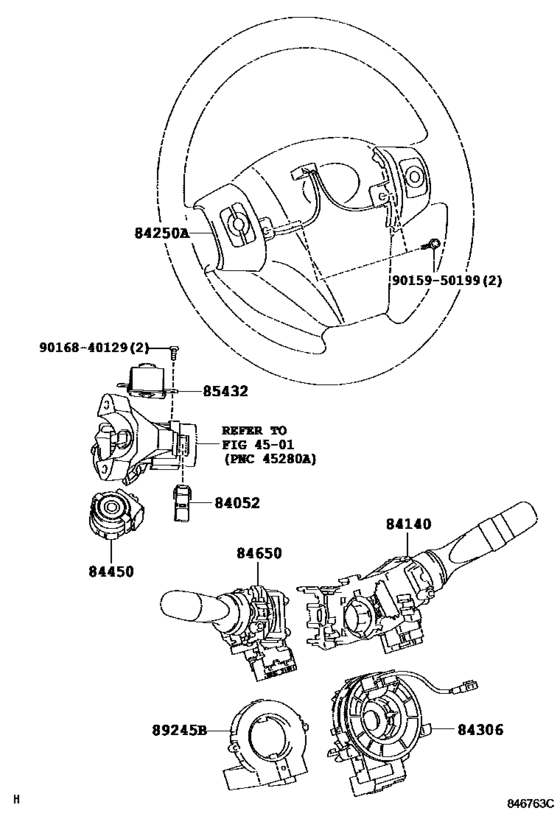

Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U) 16

#	OEM	Part name
84140	84140-52090	Switch Assy, Headlamp Dimmer
84140	84140-52100	Switch Assy, Headlamp Dimmer
84140	84140-52110	Switch Assy, Headlamp Dimmer
84140	84140-52120	Switch Assy, Headlamp Dimmer
84140	84140-12590	Switch Assy, Headlamp Dimmer
84140	84140-12600	Switch Assy, Headlamp Dimmer
84140	84140-52130	Switch Assy, Headlamp Dimmer
84140	84140-52180	Switch Assy, Headlamp Dimmer
84250	84250-52010-B3	Switch Assy, Steering Pad
84250	84250-52010-B2	Switch Assy, Steering Pad
84306	84306-52090	Cable Sub-Assy, Spiral
84306	84306-52100	Cable Sub-Assy, Spiral
84650	84652-52250	Switch Assy, Windshield Wiper
84650	84652-52251	Switch Assy, Windshield Wiper
9015950199	90159-50199	SCREW
9016840129	90168-40129	SCREW TAPPING

OEM	Part name	Category
84140-12590	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84140-12600	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84140-52090	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84140-52100	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84140-52110	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84140-52120	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84140-52130	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84140-52180	Switch Assy, Headlamp Dimmer	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84250-52010-B2	Switch Assy, Steering Pad	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84250-52010-B3	Switch Assy, Steering Pad	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84306-52090	Cable Sub-Assy, Spiral	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84306-52100	Cable Sub-Assy, Spiral	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84652-52250	Switch Assy, Windshield Wiper	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
84652-52251	Switch Assy, Windshield Wiper	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
90159-50199	SCREW	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)
90168-40129	SCREW TAPPING	Switch & Relay & Computer ([08.2007 - ] ｽﾃｱﾘﾝｸﾞ (0501-0708) ; (0708- )B,F,ILL,U)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 172
Collected: 2026-08-04
