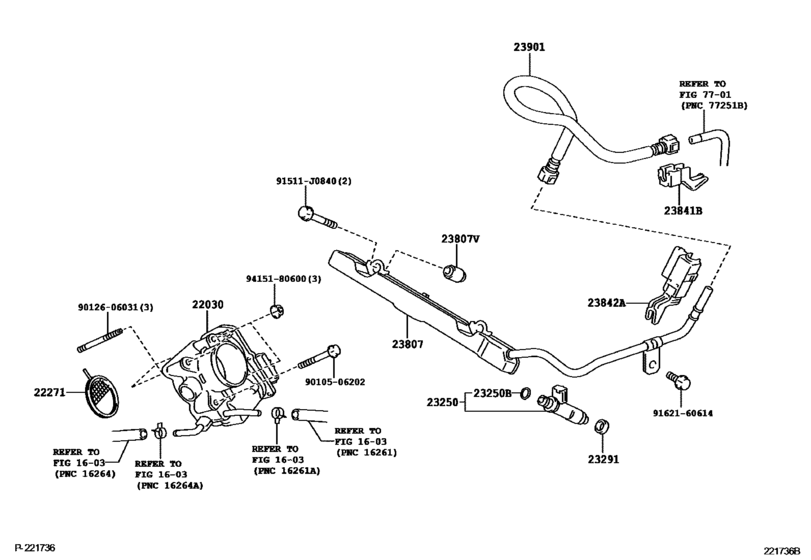

| 22030-21030 |
Body Assy, Throttle W/motor |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 22271-21060 |
Gasket, Throttle Body |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23209-21040 |
Injector Assy, Fuel |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23209-21120 |
Injector Assy, Fuel |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23291-41010 |
Insulator, Injector Vibration |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23807-21030 |
Pipe Sub-Assy, Fuel Delivery |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23807-21031 |
Pipe Sub-Assy, Fuel Delivery |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23841-21040 |
Clamp, Fuel Pipe, No.1(For Efi) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23841-21050 |
Clamp, Fuel Pipe, No.1(For Efi) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23842-21010 |
Clamp, Fuel Pipe, No.2(For Efi) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23891-21010 |
Spacer, No.1(For Delivery Pipe) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 23901-21110 |
Tube Sub-Assy, Fuel |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 90105-06202 |
Bolt(For Cylinder Head Cover) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 90126-06031 |
Stud, Bolt |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 90301-07037 |
Ring, O(For Fuel Injector) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 91511-J0840 |
Bolt(For Alternator) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 91621-60614 |
Bolt(For Transaxle & Engine Setting) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Fuel Injection System ([01.2005 - ] (0501- )1NZFE) |
