NCP91

Toyota VITZ · 2005 · 2,922 parts · 172 categories

2,922 items

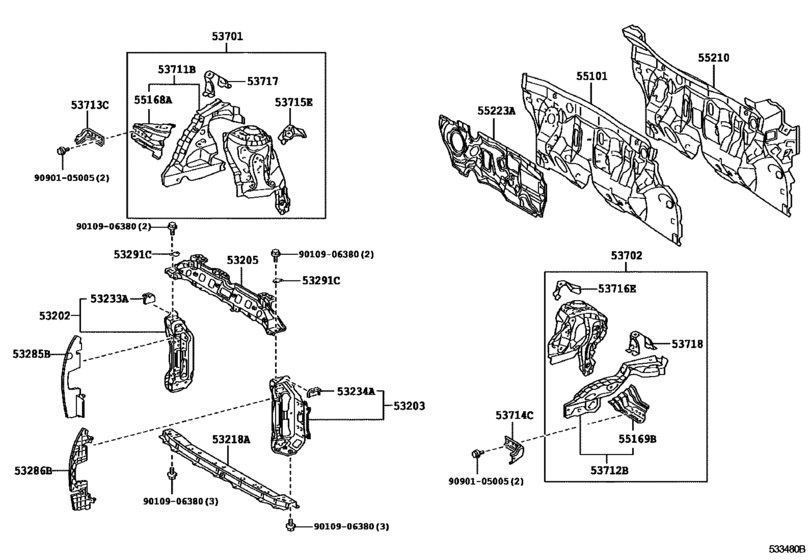

Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U) 32

#	OEM	Part name
53202	53202-52905	Support Sub-Assy, Radiator, Rh
53202	53202-52910	Support Sub-Assy, Radiator, Rh
53203	53203-52903	Support Sub-Assy, Radiator, Lh
53203	53203-52908	Support Sub-Assy, Radiator, Lh
53205	53205-52090	Support Sub-Assy, Radiator, Upper
53218	53028-52070	Support Sub-Assy, Radiator, Lower
53233	53233-52030	Bracket, Headlamp, No.1 Rh
53234	53234-52040	Bracket, Headlamp, No.1 Lh
53285	53285-52280	Seal, Radiator Side Air, No.1
53286	53286-52220	Seal, Radiator Side Air, No.2
53291	53291-52070	Seal, Radiator Support To Frame
53701	53701-52150	Apron Sub-Assy, Front Fender, Rh
53702	53702-52150	Apron Sub-Assy, Front Fender, Lh
53711	53707-52030	Apron Sub-Assy, Fender Side, Rh
53712	53708-52030	Apron Sub-Assy, Fender Side, Lh
53713	53713-52010	Extension, Front Fender Apron, Front Rh
53714	53714-52020	Extension, Front Fender Apron, Front Lh
53715	53715-52030	Extension, Front Fender Apron, Rear Rh
53716	53716-52030	Extension, Front Fender Apron, Rear Lh
53717	53717-52080	Plate, Fender Apron, Rh
53718	53718-52080	Plate, Fender Apron, Lh
55101	55101-52521	Panel Sub-Assy, Dash
55168	55168-52130	Bracket, Front Fender Mounting, Rh
55169	55169-52130	Bracket, Front Fender Mounting, Lh
55210	55210-52171	Insulator Assy, Dash Panel
55210	55210-52173	Insulator Assy, Dash Panel
55210	55210-52172	Insulator Assy, Dash Panel
55223	55223-52080	Insulator, Dash Panel, Outer
55223	55223-52101	Insulator, Dash Panel, Outer
55223	55223-52100	Insulator, Dash Panel, Outer
9010906380	90109-06380	BOLT
9090105005	90901-05005	New Genuine Part

OEM	Part name	Category
53028-52070	Support Sub-Assy, Radiator, Lower	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53202-52905	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53202-52910	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53203-52903	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53203-52908	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53205-52090	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53233-52030	Bracket, Headlamp, No.1 Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53234-52040	Bracket, Headlamp, No.1 Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53285-52280	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53286-52220	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53291-52070	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53701-52150	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53702-52150	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53707-52030	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53708-52030	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53713-52010	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53714-52020	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53715-52030	Extension, Front Fender Apron, Rear Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53716-52030	Extension, Front Fender Apron, Rear Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53717-52080	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
53718-52080	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55101-52521	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55168-52130	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55169-52130	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55210-52171	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55210-52172	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55210-52173	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55223-52080	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55223-52100	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
55223-52101	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
90109-06380	BOLT	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
90901-05005	New Genuine Part	Front Fender Apron & Dash Panel ([08.2007 - ] (0501- )RS ; (0708- )B,F,ILL,U)
