NCP91

Toyota VITZ · 2005 · 2,922 parts · 172 categories

← Back to categories

2,922 items

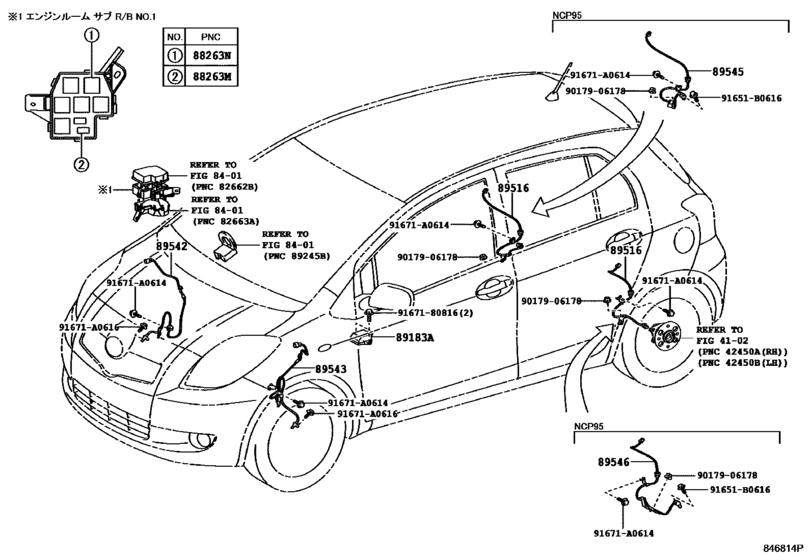

Abs & Vsc ([01.2005 - ] (0501- )) 15

#	OEM	Part name
89516	89516-52090	Wire, Skid Control Sensor
89516	89516-52100	Wire, Skid Control Sensor
89516	89516-52110	Wire, Skid Control Sensor
89516	89516-52120	Wire, Skid Control Sensor
89542	89542-52030	Sensor, Speed, Front Rh
89542	89542-52060	Sensor, Speed, Front Rh
89542	89542-52120	Sensor, Speed, Front Rh
89543	89543-52030	Sensor, Speed, Front Lh
89543	89543-52060	Sensor, Speed, Front Lh
89543	89543-52120	Sensor, Speed, Front Lh
91651	91651-B0616	BOLT WWASHER
91671	91671-A0614	Bolt
91671	91671-A0616	BOLT FLANGE
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
89516-52090	Wire, Skid Control Sensor	Abs & Vsc ([01.2005 - ] (0501- ))
89516-52100	Wire, Skid Control Sensor	Abs & Vsc ([01.2005 - ] (0501- ))
89516-52110	Wire, Skid Control Sensor	Abs & Vsc ([01.2005 - ] (0501- ))
89516-52120	Wire, Skid Control Sensor	Abs & Vsc ([01.2005 - ] (0501- ))
89542-52030	Sensor, Speed, Front Rh	Abs & Vsc ([01.2005 - ] (0501- ))
89542-52060	Sensor, Speed, Front Rh	Abs & Vsc ([01.2005 - ] (0501- ))
89542-52120	Sensor, Speed, Front Rh	Abs & Vsc ([01.2005 - ] (0501- ))
89543-52030	Sensor, Speed, Front Lh	Abs & Vsc ([01.2005 - ] (0501- ))
89543-52060	Sensor, Speed, Front Lh	Abs & Vsc ([01.2005 - ] (0501- ))
89543-52120	Sensor, Speed, Front Lh	Abs & Vsc ([01.2005 - ] (0501- ))
90179-06178	Nut (For Rear Wiper Arm Setting)	Abs & Vsc ([01.2005 - ] (0501- ))
91651-B0616	BOLT WWASHER	Abs & Vsc ([01.2005 - ] (0501- ))
91671-80816	Bolt (For Transmission Control Cable Bracket)	Abs & Vsc ([01.2005 - ] (0501- ))
91671-A0614	Bolt	Abs & Vsc ([01.2005 - ] (0501- ))
91671-A0616	BOLT FLANGE	Abs & Vsc ([01.2005 - ] (0501- ))

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 172
Collected: 2026-08-04
