NCP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 2,886 parts · 169 categories

2,886 items

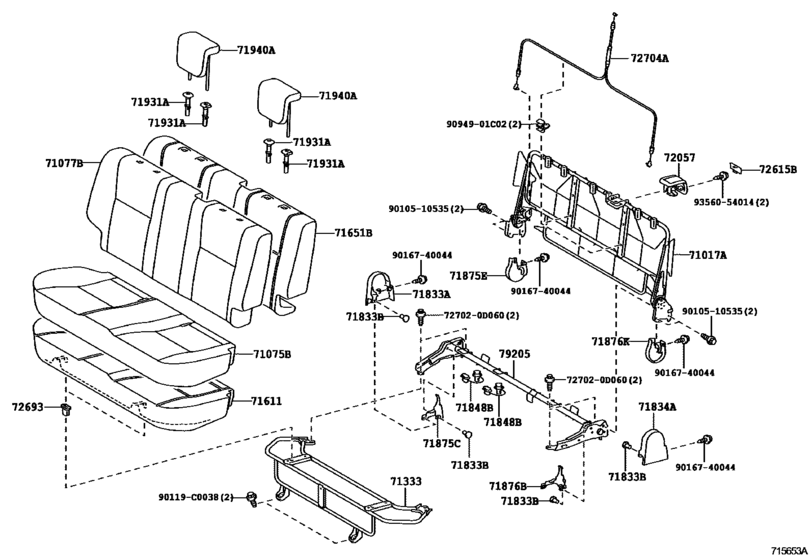

Rear Seat & Seat Track ([05.2008 - ] (0805- )STD) 34

#	OEM	Part name
71017	71017-0D180	Frame Sub-Assy, Rear Seat Back
71075	71075-0D580-E0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0D581-E0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-0D880-E1	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-0D710-E0	Cover, Rear Seat Back (For Bench Type)
71077	71077-0D711-E0	Cover, Rear Seat Back (For Bench Type)
71077	71077-0DB50-E1	Cover, Rear Seat Back (For Bench Type)
71333	71333-0D040	Leg, Rear Seat Cushion, No.1
71611	71503-0D120	Pad, Rear Seat Cushion
71651	71651-0D140	Pad, Rear Seat Back(For Bench Type)
71833	71833-0D060-B0	Cover, Rear Seat Reclining, No.1 Rh
71833	90467-08104-B2	Clip(For Rear Seat)
71834	71834-0D060-B0	Cover, Rear Seat Reclining, No.1 Lh
71848	71848-0D020	Cap, Seat Adjuster Cover, Rh
71875	71875-0D150-B0	Cover, Reclining Adjuster Inside, Rh
71875	71875-0D160-B0	Cover, Reclining Adjuster Inside, Rh
71876	71876-0D150-B0	Cover, Reclining Adjuster Inside, Lh
71876	71876-0D160-B0	Cover, Reclining Adjuster Inside, Lh
71931	71930-42020-E1	Support Assy, Front Seat Headrest
71931	71931-42020-E1	Support Assy, Front Seat Headrest
71940	71940-0D410-E0	Headrest Assy, Rear Seat
71940	71940-0D411-E0	Headrest Assy, Rear Seat
71940	71940-0D630-E1	Headrest Assy, Rear Seat
72057	72057-0D060-E0	Lever Sub-Assy, Rear Seat Lock Control, Rh
72615	72615-0D030-E0	Cover, Rear Seat Lock Striker, Rh
72693	72693-12080	Hook, Rear Seat Cushion Lock
72704	72704-52110	Cable, Rear Seat Reclining Control
79205	79205-0D010	Leg Sub-Assy, No.2 Seat
90119	90119-C0038	New Genuine Part
727020	72702-0D060	Bracket Sub-assy, Rear Seat Back Striker
9094901	90949-01C02	New Genuine Part
9010510535	90105-10535	New Genuine Part
9016740044	90167-40044	BOLT
9356054014	93560-54014	SCREW

OEM	Part name	Category
71017-0D180	Frame Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71075-0D580-E0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71075-0D581-E0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71075-0D880-E1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71077-0D710-E0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71077-0D711-E0	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71077-0DB50-E1	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71333-0D040	Leg, Rear Seat Cushion, No.1	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71503-0D120	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71651-0D140	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71833-0D060-B0	Cover, Rear Seat Reclining, No.1 Rh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71834-0D060-B0	Cover, Rear Seat Reclining, No.1 Lh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71848-0D020	Cap, Seat Adjuster Cover, Rh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71875-0D150-B0	Cover, Reclining Adjuster Inside, Rh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71875-0D160-B0	Cover, Reclining Adjuster Inside, Rh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71876-0D150-B0	Cover, Reclining Adjuster Inside, Lh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71876-0D160-B0	Cover, Reclining Adjuster Inside, Lh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71930-42020-E1	Support Assy, Front Seat Headrest	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71931-42020-E1	Support Assy, Front Seat Headrest	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71940-0D410-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71940-0D411-E0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
71940-0D630-E1	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
72057-0D060-E0	Lever Sub-Assy, Rear Seat Lock Control, Rh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
72615-0D030-E0	Cover, Rear Seat Lock Striker, Rh	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
72693-12080	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
72702-0D060	Bracket Sub-assy, Rear Seat Back Striker	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
72704-52110	Cable, Rear Seat Reclining Control	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
79205-0D010	Leg Sub-Assy, No.2 Seat	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
90105-10535	New Genuine Part	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
90119-C0038	New Genuine Part	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
90167-40044	BOLT	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
90467-08104-B2	Clip(For Rear Seat)	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
90949-01C02	New Genuine Part	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
93560-54014	SCREW	Rear Seat & Seat Track ([05.2008 - ] (0805- )STD)
