NCP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 2,886 parts · 169 categories

2,886 items

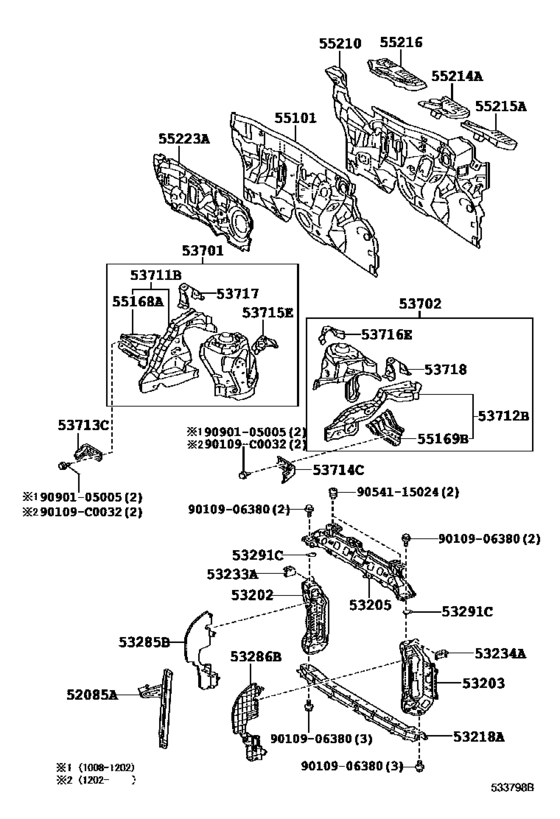

Front Fender Apron & Dash Panel ([08.2010 - ] (1008- )) 39

#	OEM	Part name
52085	52085-0D010	Stay Sub-Assy, Front Bumper, Center
53202	53202-0D070	Support Sub-Assy, Radiator, Rh
53203	53203-0D070	Support Sub-Assy, Radiator, Lh
53205	53205-0D070	Support Sub-Assy, Radiator, Upper
53205	53205-0D090	Support Sub-Assy, Radiator, Upper
53218	53028-0D040	Support, Radiator, Lower
53218	53028-0D050	Support, Radiator, Lower
53233	53233-0D020	Bracket, Headlamp, No.1 Rh
53234	53234-0D020	Bracket, Headlamp, No.1 Lh
53285	53285-0D070	Seal, Radiator Side Air, No.1
53285	53285-0D120	Seal, Radiator Side Air, No.1
53286	53286-0D070	Seal, Radiator Side Air, No.2
53286	53286-0D120	Seal, Radiator Side Air, No.2
53291	53291-0D020	Seal, Radiator Support To Frame
53701	53701-0D180	Apron Sub-Assy, Front Fender, Rh
53702	53702-0D170	Apron Sub-Assy, Front Fender, Lh
53711	53707-0D020	Apron Sub-Assy, Fender Side, Rh - FRONT FENDER, FRONT RH
53712	53708-0D020	Apron Sub-Assy, Fender Side, Lh - FRONT FENDER, FRONT LH
53713	53713-0D020	Extension, Front Fender Apron, Front Rh
53714	53714-0D020	Extension, Front Fender Apron, Front Lh
53715	53715-0D020	Extension, Front Fender Apron, Rear Rh
53716	53716-0D020	Extension, Front Fender Apron, Rear Lh
53717	53717-0D020	Plate, Fender Apron, Rh
53718	53718-0D020	Plate, Fender Apron, Lh
55101	55101-0D460	Panel Sub-Assy, Dash
55101	55101-0D450	Panel Sub-Assy, Dash
55168	55168-0D050	Bracket, Front Fender Mounting, Rh
55169	55169-0D050	Bracket, Front Fender Mounting, Lh
55210	55210-0D230	Insulator Assy, Dash Panel
55210	55210-0D231	Insulator Assy, Dash Panel
55214	55214-0D080	Pad, Dash Panel Insulator, No.2
55215	55215-0D070	Pad, Dash Panel Insulator, No.3
55216	55216-0D070	Pad, Dash Panel Insulator, No.4
55223	55223-0D150	Insulator, Dash Panel, Outer
55223	55223-0D151	Insulator, Dash Panel, Outer
90109	90109-C0032	New Genuine Part
9010906380	90109-06380	BOLT
9054115024	90541-15024	Cushion, Radiator Support
9090105005	90901-05005	New Genuine Part

OEM	Part name	Category
52085-0D010	Stay Sub-Assy, Front Bumper, Center	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53028-0D040	Support, Radiator, Lower	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53028-0D050	Support, Radiator, Lower	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53202-0D070	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53203-0D070	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53205-0D070	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53205-0D090	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53233-0D020	Bracket, Headlamp, No.1 Rh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53234-0D020	Bracket, Headlamp, No.1 Lh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53285-0D070	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53285-0D120	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53286-0D070	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53286-0D120	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53291-0D020	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53701-0D180	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53702-0D170	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53707-0D020	Apron Sub-Assy, Fender Side, Rh - FRONT FENDER, FRONT RH	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53708-0D020	Apron Sub-Assy, Fender Side, Lh - FRONT FENDER, FRONT LH	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53713-0D020	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53714-0D020	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53715-0D020	Extension, Front Fender Apron, Rear Rh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53716-0D020	Extension, Front Fender Apron, Rear Lh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53717-0D020	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
53718-0D020	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55101-0D450	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55101-0D460	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55168-0D050	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55169-0D050	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55210-0D230	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55210-0D231	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55214-0D080	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55215-0D070	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55216-0D070	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55223-0D150	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
55223-0D151	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
90109-06380	BOLT	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
90109-C0032	New Genuine Part	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
90541-15024	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
90901-05005	New Genuine Part	Front Fender Apron & Dash Panel ([08.2010 - ] (1008- ))
