Search › Model › NCP90

NCP90

Toyota YARIS-ECHO-VIOS-LIMO · 2005 · 2,886 parts · 169 categories

2,886 items

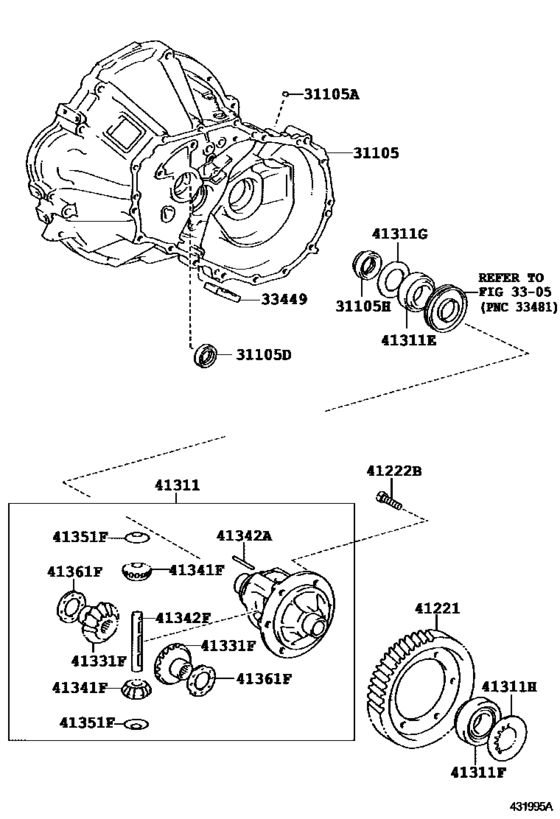

Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F) 45

#	OEM	Part name
31105	31105-0D050	Case Sub-Assy, Transaxle(Mtm)
31105	90331-08002	Plug, Tight(For Front Transaxle Case)
31105	90311-C0009	Seal, Oil, No.1(For Front Transaxle Case)
31105	90311-C0005	Seal, Oil, No.2(For Transaxle Case)
31105	90311-C0010	Seal, Oil, No.2(For Transaxle Case)
33449	33449-0D020	Magnet, Transmission
33449	33449-0D030	Magnet, Transmission
41221	41221-02090	Gear, Front Differential Ring
41222	90105-11040	Bolt (For Rear Differential Ring Gear Set)
41311	41301-0D010	Case, Front Differential
41311	90366-C0007	Bearing, Tapered Roller (For Front Differential Case Front)
41311	90366-C0013	Bearing, Tapered Roller (For Front Differential Case Front)
41311	90366-C0010	Bearing, Tapered Roller (For Front Differential Case Rear)
41311	90366-C0016	Bearing, Tapered Roller (For Front Differential Case Rear)
41311	90560-41003	Shim(For Rear Differential Case)
41311	90564-41014	Washer, Plate (For Front Differential Case Rear)
41311	90564-41015	Washer, Plate (For Front Differential Case Rear)
41311	90564-41016	Washer, Plate (For Front Differential Case Rear)
41311	90564-41017	Washer, Plate (For Front Differential Case Rear)
41311	90564-41018	Washer, Plate (For Front Differential Case Rear)
41311	90564-41019	Washer, Plate (For Front Differential Case Rear)
41311	90564-41020	Washer, Plate (For Front Differential Case Rear)
41311	90564-41021	Washer, Plate (For Front Differential Case Rear)
41311	90564-41022	Washer, Plate (For Front Differential Case Rear)
41311	90564-41023	Washer, Plate (For Front Differential Case Rear)
41311	90564-41024	Washer, Plate (For Front Differential Case Rear)
41311	90564-41025	Washer, Plate (For Front Differential Case Rear)
41311	90564-41026	Washer, Plate (For Front Differential Case Rear)
41311	90564-41027	Washer, Plate (For Front Differential Case Rear)
41311	90564-41028	Washer, Plate (For Front Differential Case Rear)
41311	90564-41029	Washer, Plate (For Front Differential Case Rear)
41311	90564-41030	Washer, Plate (For Front Differential Case Rear)
41311	90564-41031	Washer, Plate (For Front Differential Case Rear)
41311	90564-41032	Washer, Plate (For Front Differential Case Rear)
41331	41331-12011	Gear, Rear Differential Side
41341	41341-12030	Pinion, Rear Differential
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-12140	Shaft, Front Differential Pinion, No.1
41351	41351-12020	Washer, Rear Differential Pinion Thrust
41361	41361-22020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22140	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22150	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22160	Washer, Rear Differential Side Gear Thrust, No.1

OEM	Part name	Category
31105-0D050	Case Sub-Assy, Transaxle(Mtm)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
33449-0D020	Magnet, Transmission	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
33449-0D030	Magnet, Transmission	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41221-02090	Gear, Front Differential Ring	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41301-0D010	Case, Front Differential	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41331-12011	Gear, Rear Differential Side	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41341-12030	Pinion, Rear Differential	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41342-12140	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41351-12020	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41361-22020	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41361-22030	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41361-22040	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41361-22140	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41361-22150	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
41361-22160	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90105-11040	Bolt (For Rear Differential Ring Gear Set)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90311-C0005	Seal, Oil, No.2(For Transaxle Case)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90311-C0009	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90311-C0010	Seal, Oil, No.2(For Transaxle Case)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90331-08002	Plug, Tight(For Front Transaxle Case)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90366-C0007	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90366-C0010	Bearing, Tapered Roller (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90366-C0013	Bearing, Tapered Roller (For Front Differential Case Front)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90366-C0016	Bearing, Tapered Roller (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90560-41003	Shim(For Rear Differential Case)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41014	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41015	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41016	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41017	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41018	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41019	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41020	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41021	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41022	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41023	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41024	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41025	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41026	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41027	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41028	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41029	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41030	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41031	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
90564-41032	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([05.2008 - ] C50 (0805- )5F)
