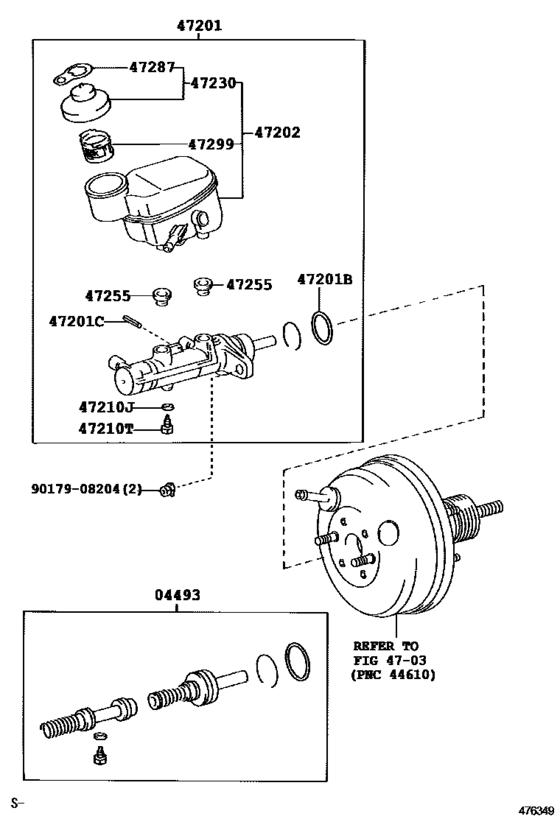

| 04493-0D120 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 31417-35010 |
Grommet |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 47201-0D220 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 47201-0D230 |
Cylinder Sub-Assy, Brake Master |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 47220-0D120 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 47220-0D130 |
Reservoir Sub-Assy, Brake Master Cylinder |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 47230-0D120 |
Cap Assy, Brake Master Cylinder Reservoir Filler |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 47287-20010 |
Label, Brake Fluid Information |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 47299-25010 |
Strainer, Master Cylinder Reservoir |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 90029-15804 |
Ring Pin, Brake Master Cylinder |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 90029-20059 |
Ring, O(For Brake Master Cylinder) |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 90029-43001 |
Gasket(For Master Cylinder) |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 90080-18070 |
NUT, WWASHER |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 90109-06077 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([05.2008 - ] (0805- )) |
