Search › Model › NCP70

NCP70

Toyota WILL · 2002 · 2,684 parts · 152 categories

2,684 items

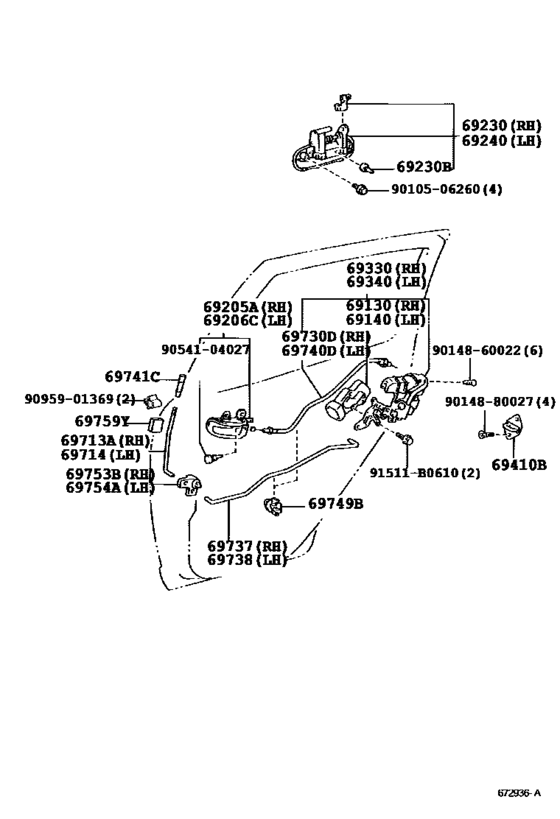

Rear Door Lock & Handle ([09.2002 - ] (0209- )) 41

#	OEM	Part name
69130	69130-52010	Actuator Assy, Rear Door Lock, Rh
69140	69140-52010	Actuator Assy, Rear Door Lock, Lh
69205	69205-52010-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-52010-B3	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-52010-C0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-52010-B3	Handle Sub-Assy, Front Door Inside, Lh
69230	69230-21020-A0	Handle Assy, Rear Door Outside, Rh
69230	69230-21020-D1	Handle Assy, Rear Door Outside, Rh
69230	69230-21020-E0	Handle Assy, Rear Door Outside, Rh
69230	69230-21020-F0	Handle Assy, Rear Door Outside, Rh
69230	69230-21020-G1	Handle Assy, Rear Door Outside, Rh
69230	69230-21020-H0	Handle Assy, Rear Door Outside, Rh
69230	69230-21020-J2	Handle Assy, Rear Door Outside, Rh
69230	69230-21020-J3	Handle Assy, Rear Door Outside, Rh
69230	90541-04018	Cushion(For Front Door Inside Handle)
69240	69240-21020-A0	Handle Assy, Front Door Outside, Lh
69240	69240-21020-D1	Handle Assy, Front Door Outside, Lh
69240	69240-21020-E0	Handle Assy, Front Door Outside, Lh
69240	69240-21020-F0	Handle Assy, Front Door Outside, Lh
69240	69240-21020-G1	Handle Assy, Front Door Outside, Lh
69240	69240-21020-H0	Handle Assy, Front Door Outside, Lh
69240	69240-21020-J2	Handle Assy, Front Door Outside, Lh
69240	69240-21020-J3	Handle Assy, Front Door Outside, Lh
69330	69050-52110	Lock Assy, Rear Door, Rh
69340	69060-52110	Lock Assy, Rear Door, Lh
69410	69410-47010	Plate Assy, Front Door Lock Striker
69713	69715-52070	Link, Rear Door Lock Remote Control, Rh
69730	69730-52080	Cable Assy, Rear Door Lock Remote Control, Rh
69737	69737-52060	Link, Rear Door Inside Locking, Rh
69738	69738-52060	Link, Rear Door Inside Locking, Lh
69741	69741-52010	Knob, Front Door Lock Control
69749	69749-52010	Clamp, Front Door Lock Link
69753	69753-10010	Bellcrank, Door Lock Control
69759	69759-12110	Seal, Rear Door Frame
91511	91511-B0610	BOLT FLANGE
9010506260	90105-06260	BOLT, WASHER BASED
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular
9054104027	90541-04027	Cushion(For Front Door Inside Handle)
9095901369	90959-01369	Clamp, Hood Lock Control Cable

OEM	Part name	Category
69050-52110	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69060-52110	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69130-52010	Actuator Assy, Rear Door Lock, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69140-52010	Actuator Assy, Rear Door Lock, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69205-52010-B3	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69205-52010-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69206-52010-B3	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69206-52010-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-A0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-D1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-E0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-F0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-G1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-H0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-J2	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69230-21020-J3	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-A0	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-D1	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-E0	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-F0	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-G1	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-H0	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-J2	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69240-21020-J3	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69410-47010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69715-52070	Link, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69730-52080	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69737-52060	Link, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69738-52060	Link, Rear Door Inside Locking, Lh	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69741-52010	Knob, Front Door Lock Control	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69749-52010	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69753-10010	Bellcrank, Door Lock Control	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
69759-12110	Seal, Rear Door Frame	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
90105-06260	BOLT, WASHER BASED	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
90148-60022	BOLT	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
90148-80027	Screw Hex Lobular	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
90541-04018	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
90541-04027	Cushion(For Front Door Inside Handle)	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
90959-01369	Clamp, Hood Lock Control Cable	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
91511-B0610	BOLT FLANGE	Rear Door Lock & Handle ([09.2002 - ] (0209- ))
