NCP42

Toyota VIOS · 2002 · 3,374 parts · 172 categories

← Back to categories

3,374 items

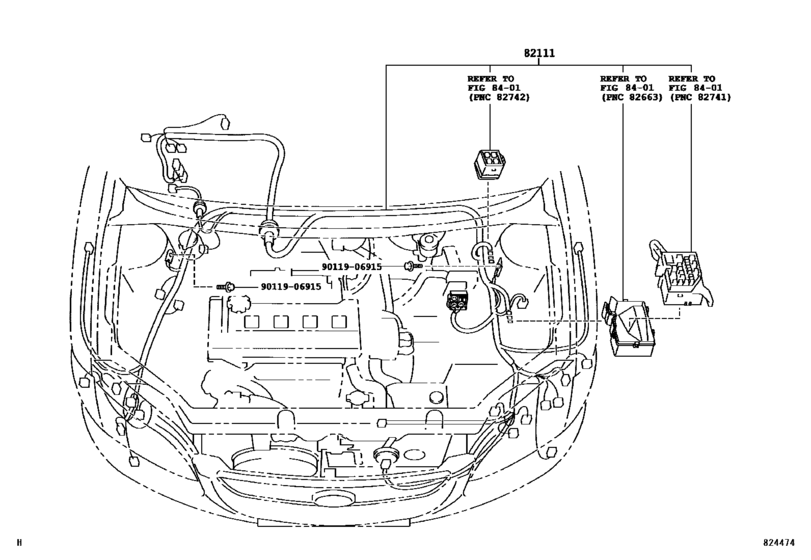

Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA) 12

#	OEM	Part name
82111	82111-0D280	Wire, Engine Room Main
82111	82111-0DC30	Wire, Engine Room Main
82111	82111-0DC31	Wire, Engine Room Main
82111	82111-0D300	Wire, Engine Room Main
82111	82111-0D370	Wire, Engine Room Main
82111	82111-0DC40	Wire, Engine Room Main
82111	82111-0DC60	Wire, Engine Room Main
82111	82111-0DC70	Wire, Engine Room Main
82111	82111-0DC71	Wire, Engine Room Main
82111	82111-0DC80	Wire, Engine Room Main
82111	82111-0DD00	Wire, Engine Room Main
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82111-0D280	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0D300	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0D370	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DC30	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DC31	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DC40	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DC60	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DC70	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DC71	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DC80	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
82111-0DD00	Wire, Engine Room Main	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([10.2005 - ] ENGINE ROOM (0510- )PHL,TAIW,TH ; (0512- )MA)
