NCP42

Toyota VIOS · 2002 · 3,374 parts · 172 categories

3,374 items

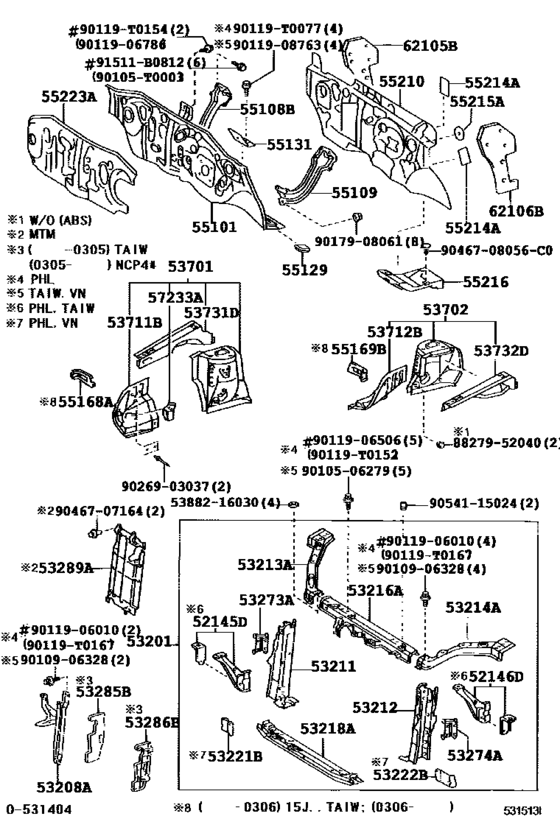

Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN) 59

#	OEM	Part name
52145	52145-0D900	Bracket, Front Bumper Side Mounting, Rh
52146	52146-0D900	Bracket, Front Bumper Side Mounting, Lh
53201	53210-0D070	Support Sub-Assy, Radiator
53208	53208-0D060	Support Sub-Assy, Hood Lock
53208	53208-0D061	Support Sub-Assy, Hood Lock
53211	53211-52010	Support, Radiator, Rh
53212	53212-52010	Support, Radiator, Lh
53213	53213-0D020	Support, Radiator, Upper Rh
53214	53214-0D020	Support, Radiator, Upper Lh
53216	53216-0D050	Support, Radiator, Upper
53216	53216-0D051	Support, Radiator, Upper
53218	53218-52010	Support, Radiator, Lower
53273	53273-52010	Reinforcement, Radiator Support, Rh
53285	53285-0D020	Seal, Radiator Side Air, No.1
53286	53286-0D020	Seal, Radiator Side Air, No.2
53701	53701-0D030	Apron Sub-Assy, Front Fender, Rh
53702	53702-0D030	Apron Sub-Assy, Front Fender, Lh
53711	53711-0D020	Apron, Front Fender, Front Rh
53712	53712-0D020	Apron, Front Fender, Front Lh
53731	53731-0D020	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-0D020	Member, Front Apron To Cowl Side, Upper Lh
55101	55101-0D080	Panel Sub-Assy, Dash
55101	55101-0D440	Panel Sub-Assy, Dash
55108	55108-52020	Brace Sub-Assy, Dash To Frame, Rh
55109	55109-52020	Brace Sub-Assy, Dash To Frame, Lh
55129	55129-0D030	Cover, Dash Panel Hole
55129	55129-0D040	Cover, Dash Panel Hole
55131	55132-52010	Reinforcement, Dash Panel
55168	55168-0D020	Bracket, Front Fender Mounting, Rh
55169	55169-0D010	Bracket, Front Fender Mounting, Lh
55210	55210-0D040	Insulator Assy, Dash Panel
55214	55214-0D030	Pad, Dash Panel Insulator, No.2
55215	55215-0D030	Pad, Dash Panel Insulator, No.3
55216	55216-0D010	Pad, Dash Panel Insulator, No.4
55223	55223-0D030	Insulator, Dash Panel, Outer
57233	57233-52010	Retainer, Engine Front Support, Rh
57233	57233-52011	Retainer, Engine Front Support, Rh
62105	62105-0D020	Insulator Sub-Assy, Cowl Side, Rh
62106	62106-0D020	Insulator Sub-Assy, Cowl Side, Lh
90105	90105-T0003	New Genuine Part
90119	90119-T0077	New Genuine Part
90119	90119-T0152	BOLT WWASHER
90119	90119-T0154	New Genuine Part
90119	90119-T0167	New Genuine Part
91511	91511-B0812	BOLT FLANGE
5388216030	53882-16030	Pad, Rear Bumper, Center
8827952040	88279-52040	Guide, Skid Control Sensor
9010506279	90105-06279	BOLT WASHER BASED
9010906328	90109-06328	BOLT
9010906328	90080-10342	New Genuine Part
9011906010	90119-06010	BOLT WWASHER
9011906506	90119-06506	New Genuine Part
9011906786	90119-06786	BOLT WWASHER
9011908763	90119-08763	New Genuine Part
9017908061	90179-08061	Nut (For Connecting Rod Swivel)
9026903037	90269-03037	RIVET
9046707164	90467-07164	Clip(For Front Fender Apron Seal)
9046708056	90467-08056-C0	Clip
9054115024	90541-15024	Cushion, Radiator Support

OEM	Part name	Category
52145-0D900	Bracket, Front Bumper Side Mounting, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
52146-0D900	Bracket, Front Bumper Side Mounting, Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53208-0D060	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53208-0D061	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53210-0D070	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53211-52010	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53212-52010	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53213-0D020	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53214-0D020	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53216-0D050	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53216-0D051	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53218-52010	Support, Radiator, Lower	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53273-52010	Reinforcement, Radiator Support, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53285-0D020	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53286-0D020	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53701-0D030	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53702-0D030	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53711-0D020	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53712-0D020	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53731-0D020	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53732-0D020	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
53882-16030	Pad, Rear Bumper, Center	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55101-0D080	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55101-0D440	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55108-52020	Brace Sub-Assy, Dash To Frame, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55109-52020	Brace Sub-Assy, Dash To Frame, Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55129-0D030	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55129-0D040	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55132-52010	Reinforcement, Dash Panel	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55168-0D020	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55169-0D010	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55210-0D040	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55214-0D030	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55215-0D030	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55216-0D010	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
55223-0D030	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
57233-52010	Retainer, Engine Front Support, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
57233-52011	Retainer, Engine Front Support, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
62105-0D020	Insulator Sub-Assy, Cowl Side, Rh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
62106-0D020	Insulator Sub-Assy, Cowl Side, Lh	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
88279-52040	Guide, Skid Control Sensor	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90080-10342	New Genuine Part	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90105-06279	BOLT WASHER BASED	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90105-T0003	New Genuine Part	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90109-06328	BOLT	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-06010	BOLT WWASHER	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-06506	New Genuine Part	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-06786	BOLT WWASHER	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-08763	New Genuine Part	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-T0077	New Genuine Part	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-T0152	BOLT WWASHER	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-T0154	New Genuine Part	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90119-T0167	New Genuine Part	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90179-08061	Nut (For Connecting Rod Swivel)	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90269-03037	RIVET	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90467-07164	Clip(For Front Fender Apron Seal)	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90467-08056-C0	Clip	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
90541-15024	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
91511-B0812	BOLT FLANGE	Front Fender Apron & Dash Panel ([03.2003 - 10.2005] (0303-0510)TAIW ; (0307-0510)PHL ; (0307-0603)VN)
