Search › Model › NCP42

NCP42

Toyota VIOS · 2002 · 3,374 parts · 172 categories

3,374 items

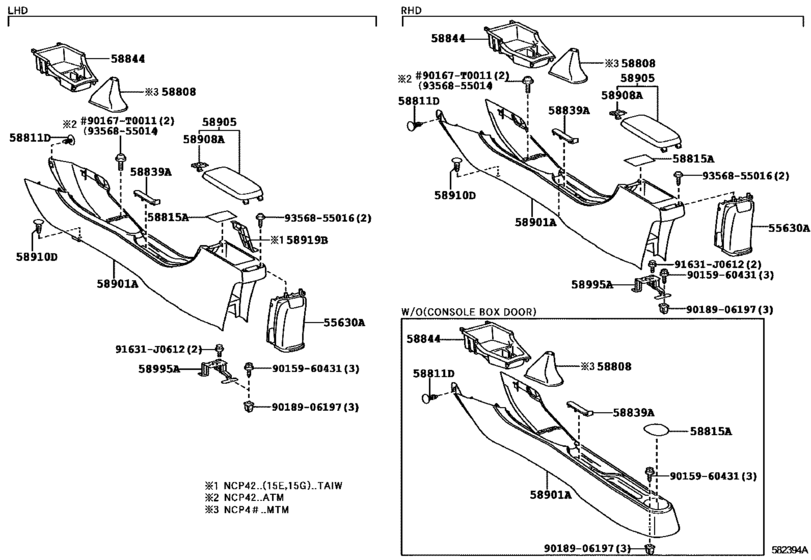

Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN) 33

#	OEM	Part name
55630	55630-0D010-A0	Holder, Rear Console Box, Cup
55630	55630-0D010-B1	Holder, Rear Console Box, Cup
58811	90467-05020-A4	Clip, Instrument Panel, No.1
58811	90467-05020-P1	Clip (For Roof Side Garnish)
58811	90467-05020-P2	Clip(For Deck Trim Side Board)
58815	58815-0D020-C1	Carpet, Console Box
58815	58815-0D060-A0	Carpet, Console Box
58815	58815-0D060-C0	Carpet, Console Box
58815	58815-0D020-A1	Carpet, Console Box
58815	58815-0D090-A0	Carpet, Console Box
58815	58815-0D090-C0	Carpet, Console Box
58839	58917-0D030-A0	Cover, Console Box Hole
58839	58917-0D030-B1	Cover, Console Box Hole
58844	58844-0D020	Bezel, Console Box
58901	58911-0D030-B1	Box Sub-Assy, Console, Rear
58901	58911-0D090-A0	Box Sub-Assy, Console, Rear
58901	58911-0D090-B1	Box Sub-Assy, Console, Rear
58901	58911-0D030-A0	Box Sub-Assy, Console, Rear
58901	58911-0D130-A0	Box Sub-Assy, Console, Rear
58901	58911-0D130-B0	Box Sub-Assy, Console, Rear
58905	58905-0D010-A0	Door Sub-Assy, Console Compartment
58905	58905-0D010-B1	Door Sub-Assy, Console Compartment
58908	58908-33030	Lock Sub-Assy, Console Compartment Door
58910	90467-08104-B0	Clip(For Console Box)
58919	58919-0D010-A0	Plate, Console Box
58919	58919-0D010-B0	Plate, Console Box
58995	58995-0D020	Bracket, Console Box Mounting, No.1
90167	90167-T0011	New Genuine Part
91631	91631-J0612	BRACKET
9015960431	90159-60431	SCREW
9018906197	90189-06197	GROMMET SCREW
9356855014	93568-55014	Screw
9356855016	93568-55016	Screw

OEM	Part name	Category
55630-0D010-A0	Holder, Rear Console Box, Cup	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
55630-0D010-B1	Holder, Rear Console Box, Cup	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58815-0D020-A1	Carpet, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58815-0D020-C1	Carpet, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58815-0D060-A0	Carpet, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58815-0D060-C0	Carpet, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58815-0D090-A0	Carpet, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58815-0D090-C0	Carpet, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58844-0D020	Bezel, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58905-0D010-A0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58905-0D010-B1	Door Sub-Assy, Console Compartment	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58908-33030	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58911-0D030-A0	Box Sub-Assy, Console, Rear	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58911-0D030-B1	Box Sub-Assy, Console, Rear	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58911-0D090-A0	Box Sub-Assy, Console, Rear	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58911-0D090-B1	Box Sub-Assy, Console, Rear	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58911-0D130-A0	Box Sub-Assy, Console, Rear	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58911-0D130-B0	Box Sub-Assy, Console, Rear	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58917-0D030-A0	Cover, Console Box Hole	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58917-0D030-B1	Cover, Console Box Hole	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58919-0D010-A0	Plate, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58919-0D010-B0	Plate, Console Box	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
58995-0D020	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
90159-60431	SCREW	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
90167-T0011	New Genuine Part	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
90189-06197	GROMMET SCREW	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
90467-05020-A4	Clip, Instrument Panel, No.1	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
90467-05020-P1	Clip (For Roof Side Garnish)	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
90467-05020-P2	Clip(For Deck Trim Side Board)	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
90467-08104-B0	Clip(For Console Box)	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
91631-J0612	BRACKET	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
93568-55014	Screw	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
93568-55016	Screw	Console Box & Bracket ([10.2005 - ] (0510- )PHL,TAIW,TH ; (0512- )MA ; (0603- )VN)
