NCP34

Toyota BB · 2001 · 3,073 parts · 179 categories

3,073 items

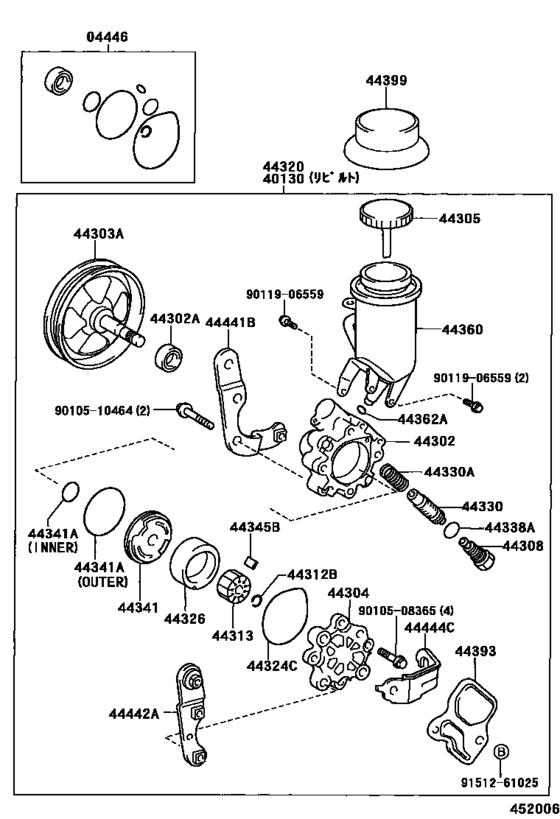

Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208)) 50

#	OEM	Part name
4446	04446-32050	Gasket Kit, Power Steering Pump
40130	40130-52090	Pump Assy,vane Rebuilt
40130	44310-52090	Pump Assy, Vane
44302	44302-52020	Housing Sub-Assy, Vane Pump, Front
44302	90311-15012	Seal, Oil, No.1(For Vane Pump Housing)
44303	44303-52020	Shaft Sub-Assy, W/pulley
44304	44304-52021	Housing Sub-Assy, Vane Pump, Rear
44305	44305-50010	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-50020	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-52030	Union Sub-Assy, Pressure Port
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-32060	Rotor, Vane Pump
44313	44313-32070	Rotor, Vane Pump
44313	44313-32080	Rotor, Vane Pump
44313	44313-32090	Rotor, Vane Pump
44313	44313-32100	Rotor, Vane Pump
44324	90903-01007	Ring, O(For Pump Housing Rear)
44326	44325-52010	Ring, Cam(For Vane Pump)
44326	44325-52020	Ring, Cam(For Vane Pump)
44326	44325-52030	Ring, Cam(For Vane Pump)
44326	44325-52040	Ring, Cam(For Vane Pump)
44326	44325-52050	Ring, Cam(For Vane Pump)
44330	44330-52070	Valve Assy, Flow Control
44330	44330-52080	Valve Assy, Flow Control
44330	44330-52090	Valve Assy, Flow Control
44330	44330-52100	Valve Assy, Flow Control
44330	44330-52110	Valve Assy, Flow Control
44330	44330-52120	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44338	90301-18009	Ring, O(For Pressure Port Union)
44341	44341-32031	Plate, Vane Pump Side, Front
44341	90301-16012	Ring, O(For Vane Pump Front Side Plate)
44341	90301-45003	Ring, O(For Vane Pump Front Side Plate)
44345	44345-32100	Plate, Vane Pump
44345	44345-32110	Plate, Vane Pump
44345	44345-32120	Plate, Vane Pump
44345	44345-32130	Plate, Vane Pump
44345	44345-32140	Plate, Vane Pump
44360	44306-52020	Reservoir Assy, Vane Pump Oil
44362	90301-11020	Ring, O, No.1(For Vane Pump Housing)
44393	44393-52010	Insulator, Power Steering Pump Heat
44399	44399-52010	Cover, Vane Pump Oil Reservoir
44441	44441-52010	Bracket, Pump, Front
44442	44442-52020	Bracket, Vane Pump, Rear
44444	44444-52010	Stay, Vane Pump, Rear
9010508365	90105-08365	Bolt (For Transaxle Rear Cover Setting)
9010510464	90105-10464	New Genuine Part
9011906559	90119-06559	Bolt (For Stator Shaft)
9151261025	91512-61025	BOLT WASHER BASED H
9151261025	91512-G1025	BOLTFLANGE

OEM	Part name	Category
04446-32050	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
40130-52090	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44302-52020	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44303-52020	Shaft Sub-Assy, W/pulley	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44304-52021	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44305-50010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44305-50020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44306-52020	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44308-52030	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44310-52090	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44313-32060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44313-32070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44313-32080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44313-32090	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44313-32100	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44325-52010	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44325-52020	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44325-52030	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44325-52040	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44325-52050	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44330-52070	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44330-52080	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44330-52090	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44330-52100	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44330-52110	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44330-52120	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44341-32031	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44345-32100	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44345-32110	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44345-32120	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44345-32130	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44345-32140	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44393-52010	Insulator, Power Steering Pump Heat	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44399-52010	Cover, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44441-52010	Bracket, Pump, Front	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44442-52020	Bracket, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
44444-52010	Stay, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90105-08365	Bolt (For Transaxle Rear Cover Setting)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90105-10464	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90119-06559	Bolt (For Stator Shaft)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90301-11020	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90301-16012	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90301-18009	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90301-45003	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90311-15012	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
90903-01007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
91512-61025	BOLT WASHER BASED H	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
91512-G1025	BOLTFLANGE	Vane Pump & Reservoir (Power Steering) ([01.2000 - 08.2002] (0001-0208))
