NCP34

Toyota BB · 2001 · 3,073 parts · 179 categories

3,073 items

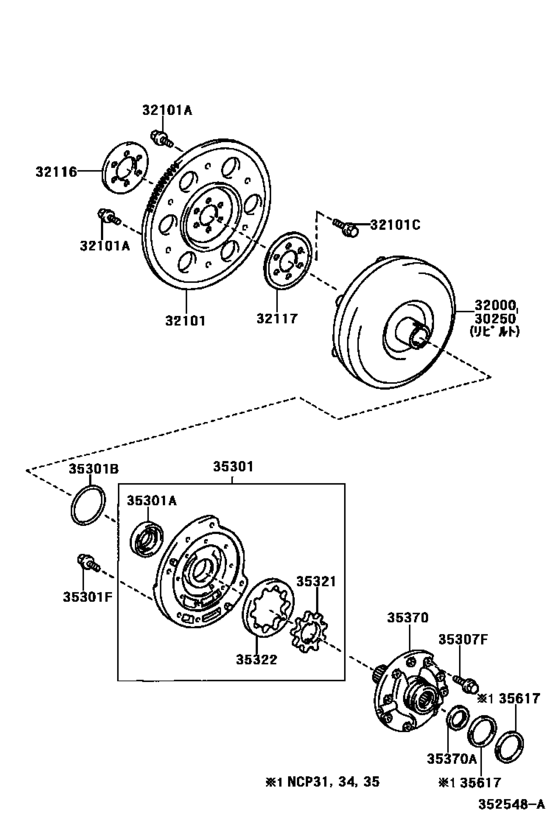

Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512)) 30

#	OEM	Part name
32000	32000-52040	Converter Assy, Torque
32000	32000-52041	Converter Assy, Torque
32101	32101-52020	Gear Sub-Assy, Drive Plate & Ring
32101	32101-52021	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08107	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08269	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10048	Bolt, Flywheel Setting
32116	32116-52030	Spacer, Drive Plate, Front
32117	32117-52030	Spacer, Drive Plate, Rear
35301	35035-52040	Body Sub-Assy, Front Oil Pump
35301	90311-38064	Seal, Oil (For Front Oil Pump)
35301	90311-38077	Seal, Oil (For Front Oil Pump)
35301	90301-99124	Ring, O (For Front Oil Pump Body)
35301	90105-08301	Bolt (For Front Oil Pump Setting)
35307	90148-60027	Bolt (For Stator Shaft)
35321	35321-52060	Gear, Front Oil Pump Drive
35321	35321-52070	Gear, Front Oil Pump Drive
35321	35321-52080	Gear, Front Oil Pump Drive
35321	35321-52090	Gear, Front Oil Pump Drive
35321	35321-52100	Gear, Front Oil Pump Drive
35322	35322-52060	Gear, Front Oil Pump Driven
35322	35322-52070	Gear, Front Oil Pump Driven
35322	35322-52080	Gear, Front Oil Pump Driven
35322	35322-52090	Gear, Front Oil Pump Driven
35322	35322-52100	Gear, Front Oil Pump Driven
35370	35370-52030	Shaft Assy, Stator
35370	35370-52070	Shaft Assy, Stator
35370	90374-26003	Bearing, Thrust Needle Roller(For Stator Shaft)
35617	35613-52010	Ring, Clutch Drum Oil Seal
35617	35613-52020	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
32000-52040	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
32000-52041	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
32101-52020	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
32101-52021	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
32116-52030	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
32117-52030	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35035-52040	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35321-52060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35321-52070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35321-52080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35321-52090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35321-52100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35322-52060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35322-52070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35322-52080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35322-52090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35322-52100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35370-52030	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35370-52070	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35613-52010	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
35613-52020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90105-08301	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90105-10048	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90109-08107	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90119-08269	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90148-60027	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90301-99124	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90311-38064	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90311-38077	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
90374-26003	Bearing, Thrust Needle Roller(For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([01.2000 - 12.2005] U340E,U340F,U441F (0001-0512))
