Search › Model › NCP34
NCP34

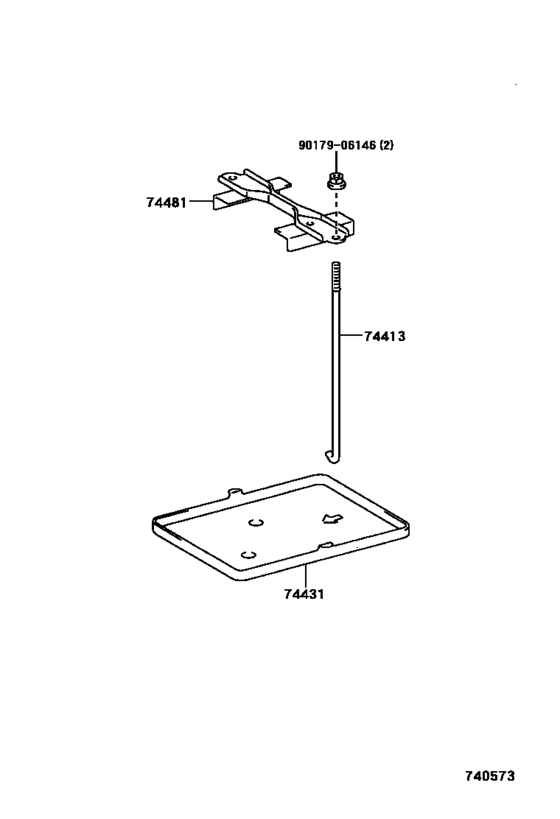

Battery Carrier ([01.2000 - ] (0001- )) 4
| # | OEM | Part name |
|---|---|---|
| 74413 | 74451-16030 | Bolt, Battery Clamp |
| 74431 | 74431-52020 | Tray, Battery |
| 74481 | 74404-52020 | Clamp Sub-Assy, Battery |
| 9017906146 | 90179-06146 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74404-52020 | Clamp Sub-Assy, Battery | Battery Carrier ([01.2000 - ] (0001- )) |
| 74431-52020 | Tray, Battery | Battery Carrier ([01.2000 - ] (0001- )) |
| 74451-16030 | Bolt, Battery Clamp | Battery Carrier ([01.2000 - ] (0001- )) |
| 90179-06146 | Nut | Battery Carrier ([01.2000 - ] (0001- )) |
