NCP30

Toyota BB · 2000 · 4,324 parts · 210 categories
NCP30 ×

← Back to categories

4,324 items

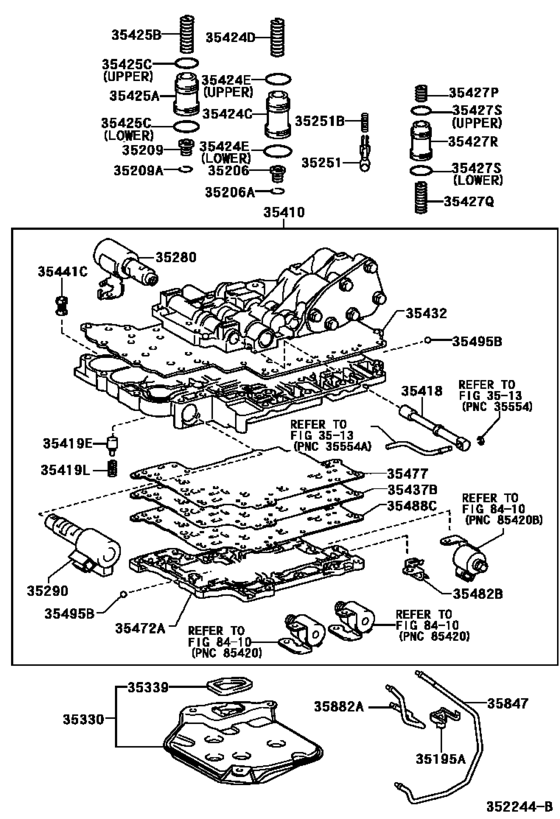

Valve Body & Oil Strainer (Atm) ([01.2000 - 08.2002] U441E (0001-0208)NCP30) 100
#OEMPart name
35195 35195-52010 Clamp, Transaxle Apply Tube, No.1
35206 35206-52010 Spring Sub-Assy, C-1 Accumulator
35206 90905-01083 Spring Sub-Assy, C-1 Accumulator
35206 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35209 35209-52010 Spring Sub-Assy, C-2 Accumulator
35211 35211-52010 Sleeve, Lock Up Control Valve
35212 35212-52010 Valve, Lock Up Relay
35212 90501-06057 Spring, Compression (For Lock Up Relay Valve)
35213 35213-24010 Valve, Lock Up Relay Control
35214 35214-52010 Valve, Lock Up Control
35214 90282-03010 Key, Straight (For Lock Up Signal Valve)
35214 90501-07111 Spring, Compression (For Lock Up Control Valve)
35215 35215-52010 Sleeve, Lock Up Relay Valve
35219 35219-52010 Plunger, Lock Up Control Valve
35224 35224-50010 Valve, Reverse Control
35224 90282-03002 Key, Straight (For Lock Up Signal Valve)
35224 90339-05020 Plug (For Reverse Control Valve)
35224 90501-06056 Spring, Compression (For Reverse Control Valve)
35246 35246-30010 Valve, Check, No.1
35246 90360-06004 Ball, Detent(For Gear Shift Head No.4)
35246 90080-36191 Ball, Check Valve
35247 35247-30010 Valve, Check, No.2
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35275 35275-52010 Valve, Solenoid Modulator
35275 90501-12143 Spring, Compression(For Low-High Shift Valve)
35280 35280-52010 Solenoid Assy, Lock Up Control
35290 35290-52010 Solenoid Assy, Line Pressure Control
35330 35330-52010 Strainer Assy, Valve Body Oil
35339 35339-52010 Gasket, Oil Strainer
35410 35410-52020 Body Assy, Transmission Valve
35410 35410-52090 Body Assy, Transmission Valve
35410 35410-52270 Body Assy, Transmission Valve
35415 35415-52010 Valve, Primary Regulator
35415 90501-13052 Spring, Compression (For Primary Regulator Valve)
35416 35416-52010 Plunger, Primary Regulator Valve, No.1
35418 35418-52010 Valve, Manual
35419 35419-52010 Valve, Check, No.3
35419 35419-52050 Valve, Check, No.3
35419 90501-08187 Spring, Compression (For Check Valve No.3)
35423 35423-52010 Piston, B-2 Accumulator
35423 90501-19033 Spring, Compression (For B-2 Accumulator Piston)
35423 90501-22047 Spring, Compression (For B-2 Accmulator Piston)
35424 35424-52010 Piston, C-1 Accumulator
35424 90501-22046 Spring, Compression (For C-1 Accumulator Piston)
35424 90301-21011 Ring, O (For C-1 Accumulator Piston)
35424 90301-29012 Ring, O (For B-2 Accumulator Piston)
35425 35425-52010 Piston, C-2 Accumulator
35425 90501-22042 Spring, Compression (For C-2 Accumulator Piston)
35426 35426-52010 Piston, C-3 Accumulator
35426 90501-23148 Spring, Compression (For C-3 Accumulator Piston)
35426 90301-24013 O-Ring
35427 90501-16165 Spring, Compression, No.1(For B-1 Accumulator Piston)
35427 90501-21029 Spring Compression, No.2(For B1 Accumulator Piston)
35427 35427-52010 Piston B-1 Accumulator
35427 90301-19016 Ring, O (For B-2 Accumulator Piston)
35432 35432-52020 Plate, Valve Body, No.1
35437 35437-52010 Plate, Valve Body Cover
35441 35441-12020 Strainer, Solenoid Oil
35445 35445-12020 Valve, Low Modulator
35445 90501-08186 Spring, Compression (For Low Modulator Valve)
35456 35456-52010 Valve, 2-3 Shift
35456 90339-05019 Plug
35464 35464-52010 Valve, 1-2 Shift
35465 35465-52010 Sleeve, Primary Regulator Valve Plunger
35466 35483-52020 Valve, Clutch Apply Control
35466 90501-07113 Spring, Compression (For Cut Back Valve)
35467 35467-52010 Plunger, Orifice Control Valve
35468 35468-52010 Valve, Secondary Regulator
35468 90501-12182 Spring, Compression (For Secondary Regulator Valve)
35471 35474-52020 Cover, Upper Valve Body
35472 35472-52010 Cover, Lower Valve Body
35477 35477-52011 Gasket, Valve Body Cover
35482 35482-52010 Clamp, Temperature Sensor
35486 35486-50010 Seat, Pressure Relief Valve Spring
35486 90501-10143 Spring (For Lower Valve Body)
35486 90360-08003 Ball (For Lower Valve Body)
35488 35488-52020 Gasket, Valve Body Cover, No.2
35489 35466-52010 Valve, C-1 Orifice Control
35489 90501-07131 Spring, Compression (For C-1 Orifice Control Valve)
35493 35493-30030 Seat(For Center Differential Clutch Control Valve Plug)
35493 35469-52010 Seat, Shift Valve Plug
35493 35478-52020 Key, Straight(For Check Valve No.2)
35493 35479-52020 Seat, Shift Valve Plug, No.1
35495 35495-22020 Ball (For Transfer Upper Valve Body)
35497 35497-52010 Valve, 3-4 Shift
35497 90501-08135 Spring, Compression (For Shift Valve Plug Seat)
35847 35847-52010 Tube, Transmission Lube Apply
35882 35882-52010 Tube, Differential Gear Lube Apply
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010506015 90105-06015 New Genuine Part
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506025 90105-06025 New Genuine Part
9010506025 91511-C0635 BOLT, FLANGE
9010506026 90105-06026 Bolt (For Transaxle Case Upper Cover)
9010506026 91511-H0620 Bolt (For Transaxle Case Upper Cover)
9010506042 90105-06042 New Genuine Part
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506255 90105-06255 BOLT FLANGE
9010506268 90105-06268 New Genuine Part
