NCP30

Toyota BB · 2000 · 4,324 parts · 210 categories

4,324 items

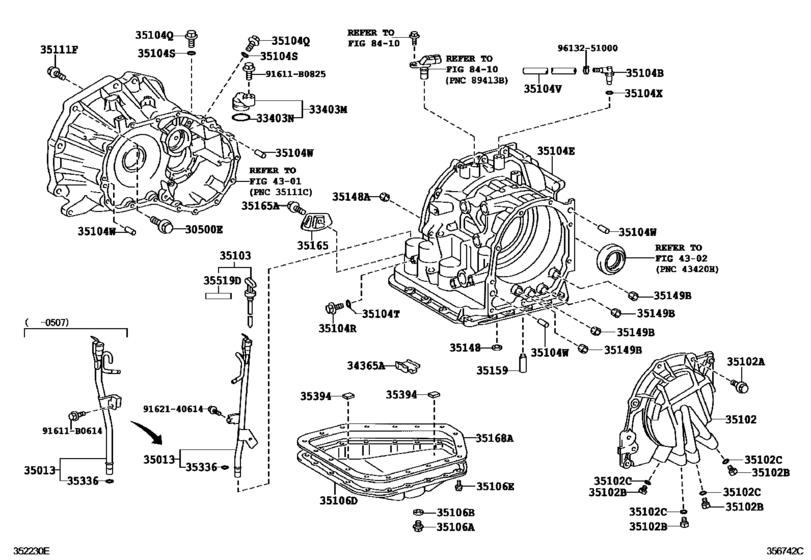

Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30) 39

#	OEM	Part name
30500	91612-61050	Bolt(For Transaxle & Engine Setting)
33403	33403-35230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24030	Ring,o (For Speedometer Driven Hole Cover)
34365	34365-52020	Retainer, Outer Race
35013	35013-52020	Tube Sub-Assy, Transmission Oil Filler
35013	35013-52021	Tube Sub-Assy, Transmission Oil Filler
35102	35102-52010	Cover Sub-Assy, Transaxle Rear
35102	35102-52030	Cover Sub-Assy, Transaxle Rear
35102	35617-52030	Ring, Clutch Drum Oil Seal
35102	90105-08375	Bolt (For Transaxle Rear Cover Setting)
35102	90341-08001	Plug, Transaxle Case, No.1
35102	90301-06196	O Ring, Transaxle Case, No.1
35103	35103-52020	Gage Sub-Assy, Transmission Oil Level
35104	90930-03156	Plug, Breather, No.1 (Atm)
35104	35104-52020	Case Sub-Assy, Automatic Transaxle
35104	90447-11044	Hose (For Breather Plug)
35104	90250-10034	Pin, Straight (For Transaxle Case)
35104	90301-08015	Ring, O (For Breather Plug)
35106	90341-10011	Drain Plug (No Type)
35106	35178-30010	Drain Plug Gasket
35106	35106-52010	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	90105-08071	Bolt (For Transaxle Rear Cover Setting)
35148	35145-60020	Gasket, Transaxle Case
35148	35148-16010	Gasket (For Automatic Transfer Case)
35148	35148-12010	Gasket, Governor Apply, No.2
35149	35149-12020	Gasket, Transaxle Case 2Nd Brake
35159	35159-52010	Gasket, Brake Drum
35165	35165-52010	Plate, Transmission Case, No.1
35165	90105-06049	Bolt(For Transmission Case No.2 Plate)
35168	35168-52010	Gasket, Automatic Transaxle Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35394	35394-48010	Magnet, Oil Cleaner (For Transmission)
35519	35519-20030	Label, Automatic Transmission Information
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
91611	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9162140614	91621-40614	BOLT
9613251000	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
33403-35230	Cover Sub-Assy, Speedometer Driven Hole	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
34365-52020	Retainer, Outer Race	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35013-52020	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35013-52021	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35102-52010	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35102-52030	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35103-52020	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35104-52020	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35106-52010	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35145-60020	Gasket, Transaxle Case	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35148-12010	Gasket, Governor Apply, No.2	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35149-12020	Gasket, Transaxle Case 2Nd Brake	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35159-52010	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35165-52010	Plate, Transmission Case, No.1	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35168-52010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35394-48010	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35519-20030	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
35617-52030	Ring, Clutch Drum Oil Seal	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90105-06049	Bolt(For Transmission Case No.2 Plate)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90105-08071	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90105-08375	Bolt (For Transaxle Rear Cover Setting)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90250-10034	Pin, Straight (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90301-08015	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90447-11044	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
90930-03156	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
91612-61050	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
91621-40614	BOLT	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
96711-24030	Ring,o (For Speedometer Driven Hole Cover)	Transmission Case & Oil Pan (Atm) ([01.2000 - ] U441E (0001- )NCP30)
