Search › Model › NCP22

NCP22

Toyota YARIS-ECHO-VIOS-LIMO · 2000 · 4,814 parts · 256 categories

4,814 items

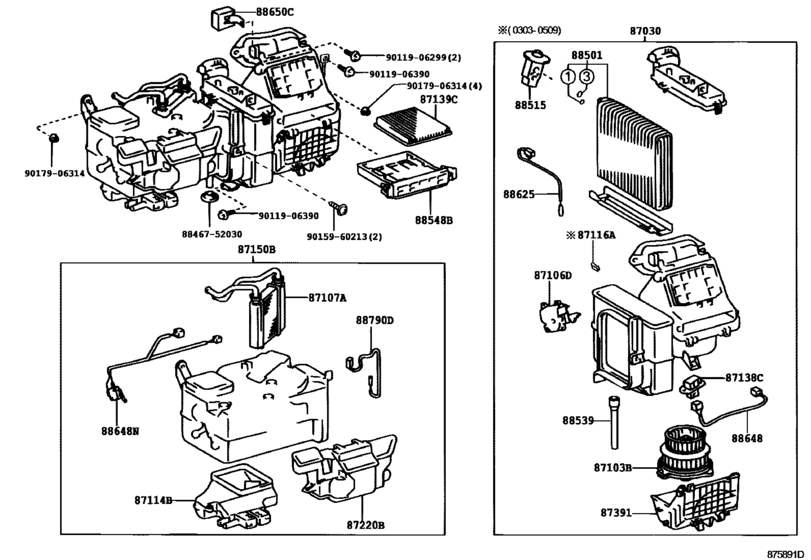

Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD) 50

#	OEM	Part name
87030	87030-52090	Blower Assy, Air Conditioner
87030	87030-52091	Blower Assy, Air Conditioner
87030	87030-52100	Blower Assy, Air Conditioner
87030	87030-52101	Blower Assy, Air Conditioner
87030	87030-52170	Blower Assy, Air Conditioner
87030	87030-52172	Blower Assy, Air Conditioner
87030	87030-52171	Blower Assy, Air Conditioner
87030	87030-52180	Blower Assy, Air Conditioner
87103	87103-52040	Motor Sub-Assy, Blower W/fan
87103	87103-52060	Motor Sub-Assy, Blower W/fan
87103	87103-52080	Motor Sub-Assy, Blower W/fan
87106	87106-52040	Servo Sub-Assy, Damper, No.1
87107	87107-52020	Unit Sub-Assy, Heater Radiator
87107	87107-52030	Unit Sub-Assy, Heater Radiator
87107	87107-52031	Unit Sub-Assy, Heater Radiator
87114	87114-52040	Cover, Heater
87114	87114-52050	Cover, Heater
87116	87116-14010	Spring, Heater Case Fastening
87138	87138-52010	Resistor, Blower
87139	88568-52010	Filter, Clean Air
87139	87139-12010	Filter, Clean Air
87150	87150-52110	Radiator Assy, Heater
87150	87150-52111	Radiator Assy, Heater
87150	87150-52120	Radiator Assy, Heater
87150	87150-52121	Radiator Assy, Heater
87150	87150-52190	Radiator Assy, Heater
87150	87150-52191	Radiator Assy, Heater
87220	87220-52020	Duct Assy, Air
87220	87220-52050	Duct Assy, Air
87391	87391-52020	Cover, Blower Motor
87391	87391-52021	Cover, Blower Motor
88501	88501-52040	Evaporator Sub-Assy, Cooler, No.1
88501	88501-52041	Evaporator Sub-Assy, Cooler, No.1
88501	88501-52080	Evaporator Sub-Assy, Cooler, No.1
88515	88515-52010	Valve, Cooler Expansion
88515	88515-52040	Valve, Cooler Expansion
88539	88539-52010	Hose, Cooler Unit Drain, No.1
88548	88548-52010	Case, Air Filter
88625	88625-52020	Thermistor, Cooler, No.1
88625	88625-52100	Thermistor, Cooler, No.1
88648	88648-52020	Wiring, Cooler, No.1
88648	88648-52010	Wiring, Cooler, No.2
88650	88650-52050	Amplifier Sub-Assy, Airconditioner
88650	88650-52110	Amplifier Sub-Assy, Airconditioner
88790	88790-52010	Thermistor Assy
8846752030	88467-52030	Grommet (For Cooler Unit Drain Hose)
9011906299	90119-06299	New Genuine Part
9011906390	90119-06390	BOLT WWASHER
9015960213	90159-60213	New Genuine Part
9017906314	90179-06314	NUT

OEM	Part name	Category
87030-52090	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87030-52091	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87030-52100	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87030-52101	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87030-52170	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87030-52171	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87030-52172	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87030-52180	Blower Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87103-52040	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87103-52060	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87103-52080	Motor Sub-Assy, Blower W/fan	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87106-52040	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87107-52020	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87107-52030	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87107-52031	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87114-52040	Cover, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87114-52050	Cover, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87116-14010	Spring, Heater Case Fastening	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87138-52010	Resistor, Blower	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87139-12010	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87150-52110	Radiator Assy, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87150-52111	Radiator Assy, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87150-52120	Radiator Assy, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87150-52121	Radiator Assy, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87150-52190	Radiator Assy, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87150-52191	Radiator Assy, Heater	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87220-52020	Duct Assy, Air	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87220-52050	Duct Assy, Air	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87391-52020	Cover, Blower Motor	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
87391-52021	Cover, Blower Motor	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88467-52030	Grommet (For Cooler Unit Drain Hose)	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88501-52040	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88501-52041	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88501-52080	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88515-52010	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88515-52040	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88539-52010	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88548-52010	Case, Air Filter	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88568-52010	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88625-52020	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88625-52100	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88648-52010	Wiring, Cooler, No.2	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88648-52020	Wiring, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88650-52050	Amplifier Sub-Assy, Airconditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88650-52110	Amplifier Sub-Assy, Airconditioner	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
88790-52010	Thermistor Assy	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
90119-06299	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
90119-06390	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
90159-60213	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)
90179-06314	NUT	Heating & Air Conditioning - Cooler Unit ([11.2002 - ] COLD SPEC (0211- )LHD)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 256
Collected: 2026-08-04
