NCP22

Toyota YARIS-ECHO-VIOS-LIMO · 2000 · 4,814 parts · 256 categories
NCP22 ×

← Back to categories

4,814 items

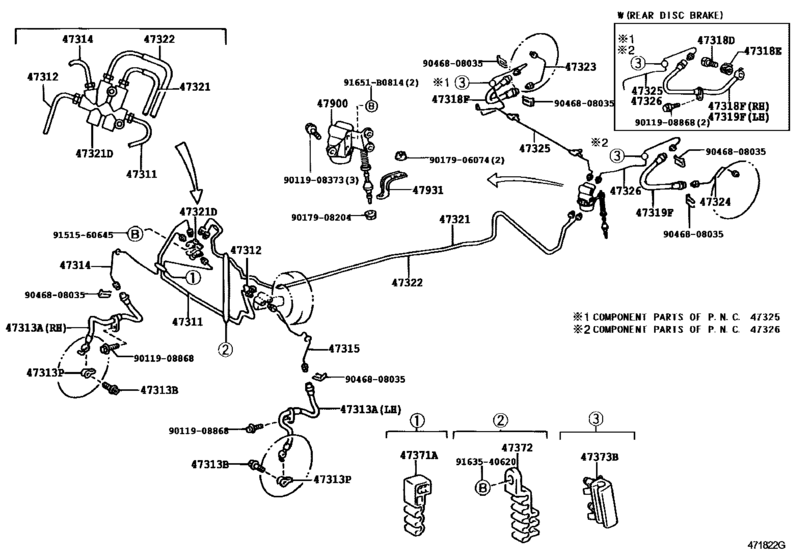

Brake Tube & Clamp ([08.1999 - 10.2000] (9908-0010)LHD) 60
#OEMPart name
47311 47311-52021 Tube, Front Brake, No.1
47311 47311-52022 Tube, Front Brake, No.1
47311 47311-52031 Tube, Front Brake, No.1
47312 47312-52021 Tube, Front Brake, No.2
47312 47312-52031 Tube, Front Brake, No.2
47313 90947-02C31 Hose, Flexible, No.1(For Front)
47313 90947-02D76 Hose, Flexible, No.1(For Front)
47313 90947-02C32 Hose, Flexible, No.1(For Front)
47313 90947-02D77 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-52031 Tube, Front Brake, No.4
47314 47314-52041 Tube, Front Brake, No.4
47314 47314-52042 Tube, Front Brake, No.4
47315 47315-52021 Tube, Front Brake, No.5
47315 47315-52041 Tube, Front Brake, No.5
47318 90947-02C30 Hose, Clutch
47318 90947-02C35 Hose, Flexible(For Rear Rh)
47318 90947-02K02 Hose, Flexible(For Rear Rh)
47318 90947-02C75 Hose, Flexible(For Rear Rh)
47319 90947-02C36 Hose, Flexible(For Rear Lh)
47319 90947-02J38 Hose, Flexible(For Rear Lh)
47319 90947-02C76 Hose, Flexible(For Rear Lh)
47321 47321-52041 Tube, Rear Brake, No.1
47321 47321-52042 Tube, Rear Brake, No.1
47321 47321-52051 Tube, Rear Brake, No.1
47321 90413-10293 Way, No.1(For Rear Brake Tube)
47321 90904-12088 Way, No.1(For Rear Brake Tube)
47322 47322-52041 Tube, Rear Brake, No.2
47322 47322-52042 Tube, Rear Brake, No.2
47322 47322-52051 Tube, Rear Brake, No.2
47323 47323-52021 Tube, Rear Brake, No.3
47323 47323-52022 Tube, Rear Brake, No.3
47323 47323-52090 Tube, Rear Brake, No.3
47324 47324-52021 Tube, Rear Brake, No.4
47324 47324-52022 Tube, Rear Brake, No.4
47324 47324-52080 Tube, Rear Brake, No.4
47325 47325-52011 Tube, Rear Brake, No.5
47325 47325-52012 Tube, Rear Brake, No.5
47326 47326-52011 Tube, Rear Brake, No.6
47326 47326-52012 Tube, Rear Brake, No.6
47371 47371-52010 Clamp, Brake Tube, No.1
47372 47372-52010 Clamp, Brake Tube, No.2
47373 47371-52030 Clamp, Brake Tube, No.3
47900 47900-52011 Valve Assy, Load Sensing W/spring
47900 47900-52100 Valve Assy, Load Sensing W/spring
47900 47900-52040 Valve Assy, Load Sensing W/spring
47900 47900-52060 Valve Assy, Load Sensing W/spring
47931 47931-52010 Bracket, Load Sensing Valve
91651 91651-B0814 Bolt with washer
91651 90119-A0109 New Genuine Part
9011908373 90119-08373 Bolt, W/washer(For Transmission Case Cover)
9011908868 90119-08868 BOLT WWASHER
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9151560645 91515-60645 New Genuine Part
9163540620 91635-40620 New Genuine Part
