NCP21

Toyota FUN-CARGO · 1999 · 4,954 parts · 227 categories

← Back to categories

4,954 items

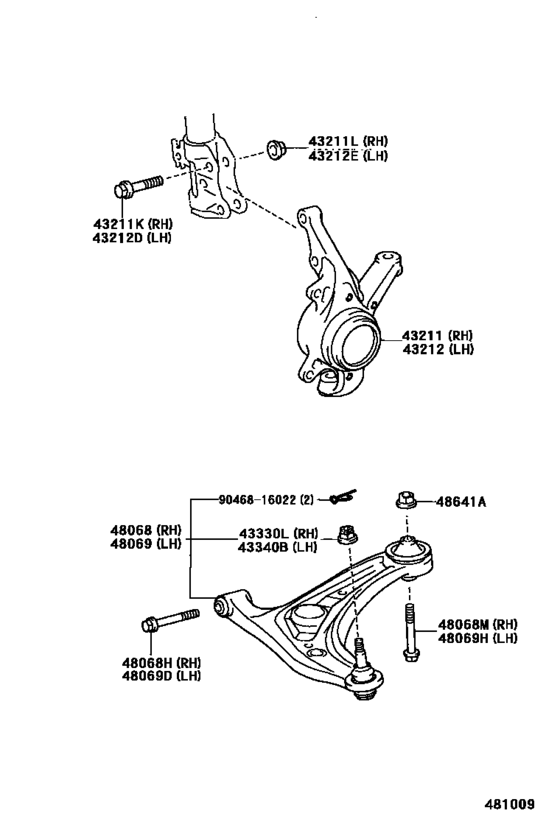

Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509)) 14

#	OEM	Part name
43211	43211-52020	Knuckle, Steering, Rh
43211	90105-14140	Bolt (For Steering Knuckle Rh)
43211	90179-14062	Nut (For Steering Knuckle Rh)
43212	43212-52020	Knuckle, Steering, Lh
43330	90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)
48068	48068-59035	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-59055	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90119-12338	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90119-14086	Bolt(For Front Suspension Lower Arm No.1 Rh)
48068	90119-12337	Bolt(For Front Suspension Lower Arm No.2 Rh)
48069	48069-59035	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-59055	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48641	90178-12009	Nut(For Suspension Lower Arm Shaft)
9046816022	90468-16022	CLIP

OEM	Part name	Category
43211-52020	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
43212-52020	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
48068-59035	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
48068-59055	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
48069-59035	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
48069-59055	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90105-14140	Bolt (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90119-12337	Bolt(For Front Suspension Lower Arm No.2 Rh)	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90119-12338	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90119-14086	Bolt(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90178-12009	Nut(For Suspension Lower Arm Shaft)	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90179-14062	Nut (For Steering Knuckle Rh)	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
90468-16022	CLIP	Front Axle Arm & Steering Knuckle ([08.1999 - 09.2005] (9908-0509))
