Search › Model › NCP175
NCP175

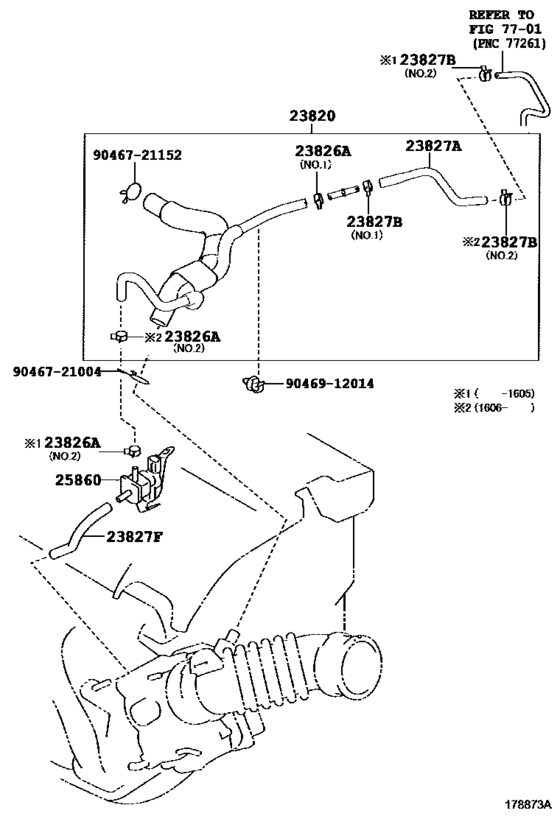

Vacuum Piping ([06.2015 - ] (1506- )1NZFE) 10
| # | OEM | Part name |
|---|---|---|
| 23820 | 23820-21250 | Hose Assy, Fuel Vapor Feed |
| 23820 | 23820-21251 | Hose Assy, Fuel Vapor Feed |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23827 | 23827-21240 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51000 | Clip Or Clamp(For Ventilation Hose) |
| 23827 | 23827-21150 | Hose, Fuel Vapor Feed, No.2 |
| 25860 | 25860-21150 | Valve Assy, Vacuum Switching, No.1 |
| 9046721004 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 9046721152 | 90467-21152 | Clip Or Clamp(For Ventilation Hose) |
| 9046912014 | 90469-12014 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| OEM | Part name | Category |
|---|---|---|
| 23820-21250 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 23820-21251 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 23827-21150 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 23827-21240 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 25860-21150 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 90467-21152 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 90469-12014 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 96132-51000 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([06.2015 - ] (1506- )1NZFE) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 2
- Category
- 179
- Collected
- 2026-08-04
