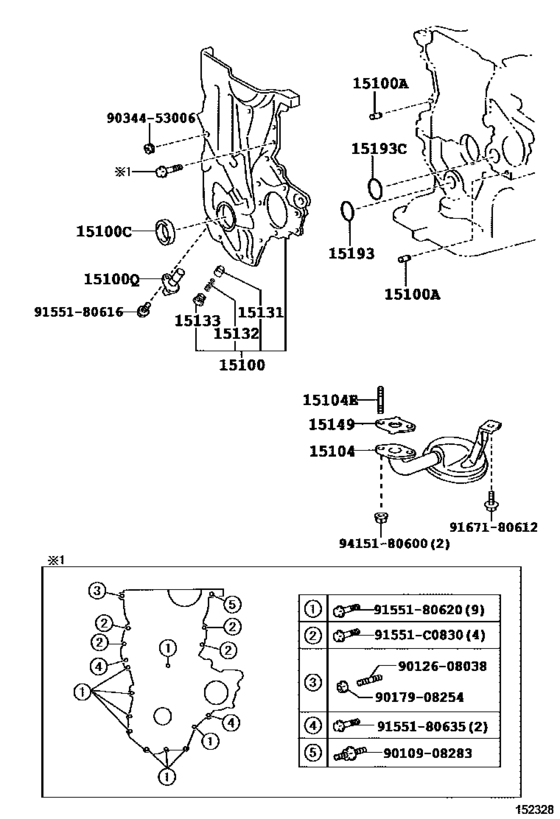

| 11497-21010 |
Ring, O(For Oil Pump) |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 12151-21010 |
Ring, O(For Oil Pump) |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 15100-21062 |
Pump Assy, Oil |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 15104-21022 |
Strainer Sub-Assy, Oil |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 15131-21020 |
Valve, Oil Pump Relief |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 15132-21060 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 15133-21030 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 16258-21030 |
Gasket, Oil Strainer Flange |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90109-08283 |
New Genuine Part |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90126-06021 |
Bolt, Stud(For Oil Strainer) |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90126-08038 |
New Genuine Part |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90179-08254 |
NUT |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90253-08003 |
Pin, Ring W/head |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90311-25033 |
Seal(For Oil Pump) |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90344-53006 |
Plug, Tight, No.1(For Timing Gear Cover) |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 90919-05087 |
Sensor, Crank Position |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 91551-80616 |
BOLT FLANGE |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 91551-80620 |
Bolt |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 91551-80635 |
Bolt(For Head To Camshaft Bearing Cap) |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 91551-C0830 |
BOLT FLANGE |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 91671-80612 |
Bolt |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Engine Oil Pump ([06.2015 - ] (1506- )1NZFE) |
