NCP151

Toyota YARIS-ECHO-VIOS-LIMO · 2013 · 2,711 parts · 165 categories

← Back to categories

2,711 items

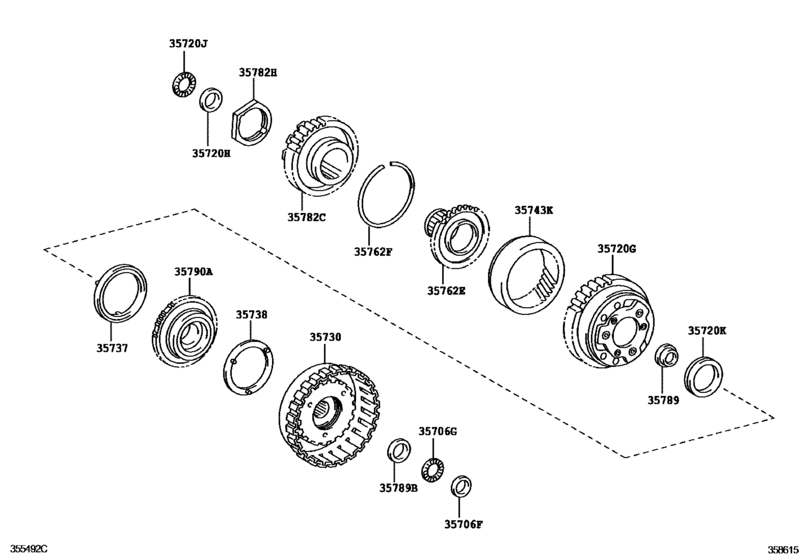

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC) 18

#	OEM	Part name
35706	35789-52050	Race, Thrust Bearing (For Sun Gear Rear)
35706	90374-18004	Bearing, Thrust (For Sun Gear Rear)
35720	35720-52070	Gear Assy, Planetary
35720	35789-52010	Race, Thrust Bearing(For Planetary Gear)
35720	90374-17001	Bearing, Thrust Needle Roller(For Planetary Gear Front)
35720	90374-42006	Bearing, Thrust Needle Roller(For Planetary Gear Rear)
35730	35730-52010	Gear Assy, Rear Planetary Sun
35737	35737-52010	Washer, Planetary Carrier Thrust
35738	35738-52020	Washer, Planetary Carrier Thrust, No.2
35743	35743-52010	Gear, Planetary Ring
35762	35762-52010	Flange, Planetary Ring Gear
35762	90520-89003	Ring, Hole Snap(For Planetary Ring Gear)
35782	35782-52030	Gear, Counter Drive
35782	35782-52050	Gear, Counter Drive
35782	90179-44001	Nut(For Counter Drive Gear)
35789	35789-52020	Race, Thrust Bearing (For Front Planetary Flange Front)
35789	35789-52040	Race, Thrust Bearing (For Front Planetary Flange Rear)
35790	35790-52010	Clutch Assy, 1 Way

OEM	Part name	Category
35720-52070	Gear Assy, Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35730-52010	Gear Assy, Rear Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35737-52010	Washer, Planetary Carrier Thrust	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35738-52020	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35743-52010	Gear, Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35762-52010	Flange, Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35782-52030	Gear, Counter Drive	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35782-52050	Gear, Counter Drive	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35789-52010	Race, Thrust Bearing(For Planetary Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35789-52020	Race, Thrust Bearing (For Front Planetary Flange Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35789-52040	Race, Thrust Bearing (For Front Planetary Flange Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35789-52050	Race, Thrust Bearing (For Sun Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
35790-52010	Clutch Assy, 1 Way	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
90179-44001	Nut(For Counter Drive Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
90374-17001	Bearing, Thrust Needle Roller(For Planetary Gear Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
90374-18004	Bearing, Thrust (For Sun Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
90374-42006	Bearing, Thrust Needle Roller(For Planetary Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
90520-89003	Ring, Hole Snap(For Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([07.2013 - ] U441E (1307- )NCP151..4FC)
