Search › Model › NCP131

NCP131

Toyota VITZ · 2010 · 4,006 parts · 249 categories

4,006 items

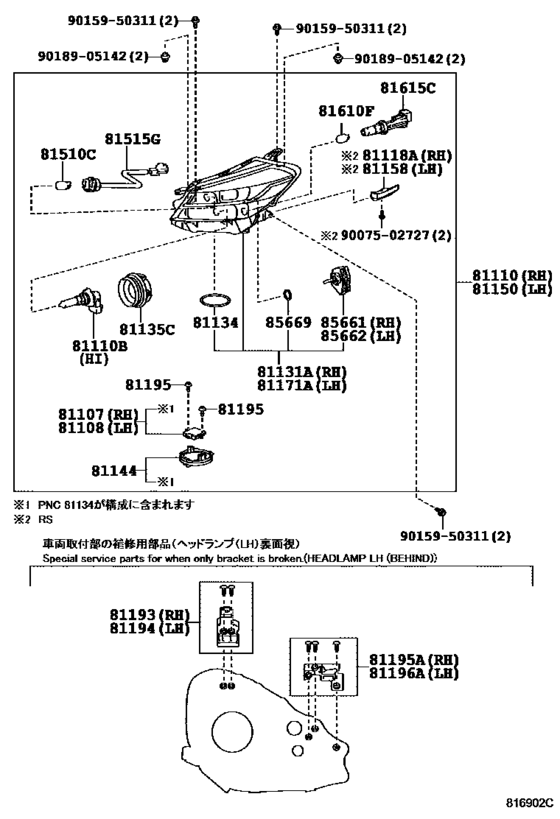

Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701)) 73

#	OEM	Part name
81107	81107-52J20	Computer Sub-Assy, Headlamp Light Control, Rh
81107	81107-75020	Computer Sub-Assy, Headlamp Light Control
81110	81110-52D90	Headlamp Assy, Rh
81110	81110-52E30	Headlamp Assy, Rh
81110	81110-52F90	Headlamp Assy, Rh
81110	81110-52J40	Headlamp Assy, Rh
81110	81110-52J60	Headlamp Assy, Rh
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90084-98033	Bulb(For Headlamp, No.1)
81110	90981-13075	Bulb(For Headlamp, No.1)
81110	81110-52D20	Headlamp Assy, Rh
81110	81110-52D40	Headlamp Assy, Rh
81110	81110-52J00	Headlamp Assy, Rh
81110	81110-52J01	Headlamp Assy, Rh
81110	81110-52J10	Headlamp Assy, Rh
81118	81118-52J40	Bracket, Headlamp, Rh
81131	81130-52D90	Unit, Headlamp, Rh
81131	81145-52E30	Unit, Headlamp, Rh
81131	81145-52F90	Unit, Headlamp, Rh
81131	81145-52J40	Unit, Headlamp, Rh
81131	81145-52J60	Unit, Headlamp, Rh
81131	81130-52D20	Unit, Headlamp, Rh
81131	81130-52J00	Unit, Headlamp, Rh
81131	81130-52J01	Unit, Headlamp, Rh
81131	81145-52D40	Unit, Headlamp, Rh
81131	81145-52J10	Unit, Headlamp, Rh
81134	90075-23002	Gasket, Headlamp - HEADLAMP HOUSING
81135	90075-65002	Cover, Headlamp Back, No.1
81135	90075-66004	Cap, Locking
81144	81135-52J20	Cover, Headlamp, No.1
81150	81150-52D90	Headlamp Assy, Lh
81150	81150-52E30	Headlamp Assy, Lh
81150	81150-52F90	Headlamp Assy, Lh
81150	81150-52J40	Headlamp Assy, Lh
81150	81150-52J60	Headlamp Assy, Lh
81150	81150-52D20	Headlamp Assy, Lh
81150	81150-52D40	Headlamp Assy, Lh
81150	81150-52J00	Headlamp Assy, Lh
81150	81150-52J01	Headlamp Assy, Lh
81150	81150-52J10	Headlamp Assy, Lh
81158	81158-52J40	Bracket, Headlamp, Lh
81171	81170-52D90	Unit, Headlamp, Lh
81171	81185-52E30	Unit, Headlamp, Lh
81171	81185-52F90	Unit, Headlamp, Lh
81171	81185-52J40	Unit, Headlamp, Lh
81171	81185-52J60	Unit, Headlamp, Lh
81171	81170-52D20	Unit, Headlamp, Lh
81171	81170-52J00	Unit, Headlamp, Lh
81171	81170-52J01	Unit, Headlamp, Lh
81171	81185-52D40	Unit, Headlamp, Lh
81171	81185-52J10	Unit, Headlamp, Lh
81193	81193-52200	Retainer, Headlamp Protector, Upper Rh
81193	81193-52260	Retainer, Headlamp Protector, Upper Rh
81194	81194-52190	Retainer, Headlamp Protector, Upper Lh
81194	81194-52200	Retainer, Headlamp Protector, Upper Lh
81195	90075-02051	Screw, Headlamp
81195	81195-52160	Retainer, Headlamp Protector, Lower Rh
81195	81195-52190	Retainer, Headlamp Protector, Lower Rh
81196	81196-52160	Retainer, Headlamp Protector, Lower Lh
81196	81196-52170	Retainer, Headlamp Protector, Lower Lh
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81515	81125-52J20	Socket & Wire, Front Turn Signal Lamp
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	81125-48470	Cord, Headlamp - HEADLAMP, RH
85661	85661-12010	Motor, Headlamp Leveling, Rh
85661	85661-12020	Motor, Headlamp Leveling, Rh
85669	90075-99120	Packing, Headlamp Leveling Motor Base
9007502727	90075-02727	Screw, Headlamp
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81107-52J20	Computer Sub-Assy, Headlamp Light Control, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81107-75020	Computer Sub-Assy, Headlamp Light Control	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52D20	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52D40	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52D90	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52E30	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52F90	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52J00	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52J01	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52J10	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52J40	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81110-52J60	Headlamp Assy, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81118-52J40	Bracket, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81125-48470	Cord, Headlamp - HEADLAMP, RH	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81125-52J20	Socket & Wire, Front Turn Signal Lamp	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81130-52D20	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81130-52D90	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81130-52J00	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81130-52J01	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81135-52J20	Cover, Headlamp, No.1	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81145-52D40	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81145-52E30	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81145-52F90	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81145-52J10	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81145-52J40	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81145-52J60	Unit, Headlamp, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52D20	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52D40	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52D90	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52E30	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52F90	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52J00	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52J01	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52J10	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52J40	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81150-52J60	Headlamp Assy, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81158-52J40	Bracket, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81170-52D20	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81170-52D90	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81170-52J00	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81170-52J01	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81185-52D40	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81185-52E30	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81185-52F90	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81185-52J10	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81185-52J40	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81185-52J60	Unit, Headlamp, Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81193-52200	Retainer, Headlamp Protector, Upper Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81193-52260	Retainer, Headlamp Protector, Upper Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81194-52190	Retainer, Headlamp Protector, Upper Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81194-52200	Retainer, Headlamp Protector, Upper Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81195-52160	Retainer, Headlamp Protector, Lower Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81195-52190	Retainer, Headlamp Protector, Lower Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81196-52160	Retainer, Headlamp Protector, Lower Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
81196-52170	Retainer, Headlamp Protector, Lower Lh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
85661-12010	Motor, Headlamp Leveling, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
85661-12020	Motor, Headlamp Leveling, Rh	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90075-02051	Screw, Headlamp	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90075-02727	Screw, Headlamp	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90075-23002	Gasket, Headlamp - HEADLAMP HOUSING	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90075-65002	Cover, Headlamp Back, No.1	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90075-66004	Cap, Locking	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90075-99120	Packing, Headlamp Leveling Motor Base	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90084-98033	Bulb(For Headlamp, No.1)	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90159-50311	SCREW	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90159-A0034	SCREW WWASHER	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90189-05142	GROMMET, SCREW	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90981-13075	Bulb(For Headlamp, No.1)	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
99132-12050	Bulb (12V 5W)	Headlamp ([04.2014 - 01.2017] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1404-1701))
