NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

← Back to categories

3,571 items

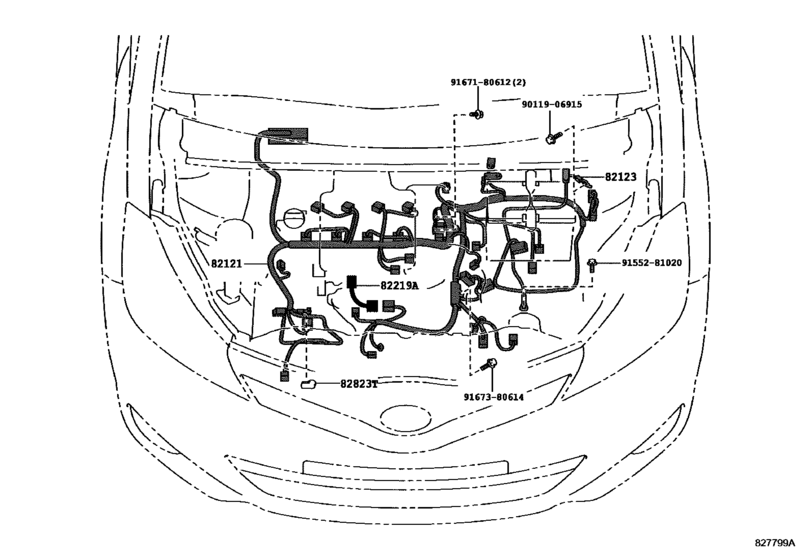

Wiring & Clamp ([08.2011 - ] ENGINE (1108- )) 15

#	OEM	Part name
82121	82121-52L60	Wire, Engine
82121	82121-52R90	Wire, Engine
82121	82121-52T20	Wire, Engine
82121	82121-52L70	Wire, Engine
82121	82121-52S00	Wire, Engine
82121	82121-52T30	Wire, Engine
82121	82121-52T31	Wire, Engine
82123	82123-52370	Wire, Engine, No.3
82123	82123-52380	Wire, Engine, No.3
82219	82219-52040	Wire, Sensor
82823	82823-22050	Cap, Terminal, No.1
9011906915	90119-06915	BOLT W-WASHER
9155281020	91552-81020	Bolt(For Alternator)
9167180612	91671-80612	Bolt
9167380614	91673-80614	BOLT, FLANGE W/WASER

OEM	Part name	Category
82121-52L60	Wire, Engine	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82121-52L70	Wire, Engine	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82121-52R90	Wire, Engine	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82121-52S00	Wire, Engine	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82121-52T20	Wire, Engine	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82121-52T30	Wire, Engine	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82121-52T31	Wire, Engine	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82123-52370	Wire, Engine, No.3	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82123-52380	Wire, Engine, No.3	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82219-52040	Wire, Sensor	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
91552-81020	Bolt(For Alternator)	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
91671-80612	Bolt	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))
91673-80614	BOLT, FLANGE W/WASER	Wiring & Clamp ([08.2011 - ] ENGINE (1108- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 230
Collected: 2026-08-04
