Search › Model › NCP130

NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

← Back to categories

3,571 items

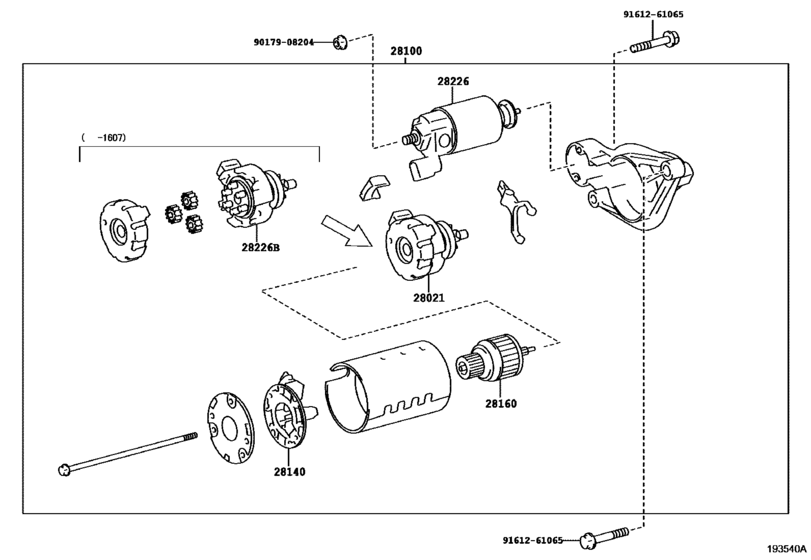

Starter ([08.2011 - ] 12V 1.0KW (1108- )) 11

#	OEM	Part name
28021	28021-21070	Clutch Sub-Assy, Starter Center Bearing
28100	28100-21070	Starter Assy
28140	28140-21070	Holder Assy, Starter Brush
28160	28160-21070	Armature Assy, Starter
28226	28226-21080	Starter Kit, Battery Terminal
28226	28226-21081	Starter Kit, Battery Terminal
28226	28226-21070	Starter Kit, Repair Service
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9161261065	91612-61065	Bolt(For Transaxle & Engine Setting)
9161261065	90119-A0104	Bolt with Washer

OEM	Part name	Category
28021-21070	Clutch Sub-Assy, Starter Center Bearing	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
28100-21070	Starter Assy	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
28140-21070	Holder Assy, Starter Brush	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
28160-21070	Armature Assy, Starter	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
28226-21070	Starter Kit, Repair Service	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
28226-21080	Starter Kit, Battery Terminal	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
28226-21081	Starter Kit, Battery Terminal	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
90080-18070	NUT, WWASHER	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
90119-A0104	Bolt with Washer	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
90179-08204	Nut	Starter ([08.2011 - ] 12V 1.0KW (1108- ))
91612-61065	Bolt(For Transaxle & Engine Setting)	Starter ([08.2011 - ] 12V 1.0KW (1108- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 230
Collected: 2026-08-04
