NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

← Back to categories

3,571 items

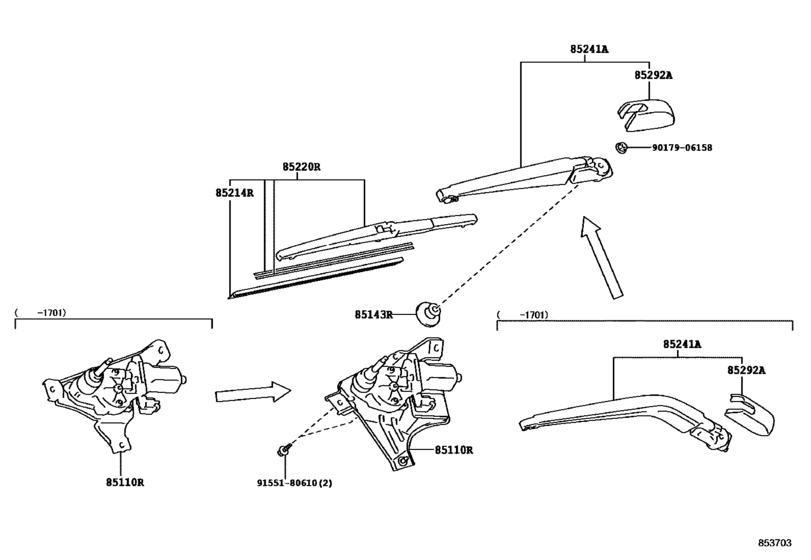

Rear Wiper ([08.2011 - ] (1108- )) 14

#	OEM	Part name
85110	85130-52230	Motor Assy, Rear Wiper
85110	85130-52270	Motor Assy, Rear Wiper
85143	85143-28070	Grommet, Rear Wiper Motor
85143	85143-52020	Grommet, Rear Wiper Motor
85214	85214-42040	Rubber, Rear Wiper
85220	85242-42030	Blade Assy, Rear Wiper
85220	85242-78010	Blade Assy, Rear Wiper
85220	85242-72010	Blade, Rr Wiper
85241	85241-52170	Arm, Rear Wiper
85241	85241-52230	Arm, Rear Wiper
85292	85292-42010	Cover, Rear Wiper Arm
85292	85292-42020	Cap, Rear Wiper Arm Head
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9155180610	91551-80610	BOLT FLANGE

OEM	Part name	Category
85130-52230	Motor Assy, Rear Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85130-52270	Motor Assy, Rear Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85143-28070	Grommet, Rear Wiper Motor	Rear Wiper ([08.2011 - ] (1108- ))
85143-52020	Grommet, Rear Wiper Motor	Rear Wiper ([08.2011 - ] (1108- ))
85214-42040	Rubber, Rear Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85241-52170	Arm, Rear Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85241-52230	Arm, Rear Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85242-42030	Blade Assy, Rear Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85242-72010	Blade, Rr Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85242-78010	Blade Assy, Rear Wiper	Rear Wiper ([08.2011 - ] (1108- ))
85292-42010	Cover, Rear Wiper Arm	Rear Wiper ([08.2011 - ] (1108- ))
85292-42020	Cap, Rear Wiper Arm Head	Rear Wiper ([08.2011 - ] (1108- ))
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Rear Wiper ([08.2011 - ] (1108- ))
91551-80610	BOLT FLANGE	Rear Wiper ([08.2011 - ] (1108- ))
