NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

← Back to categories

3,571 items

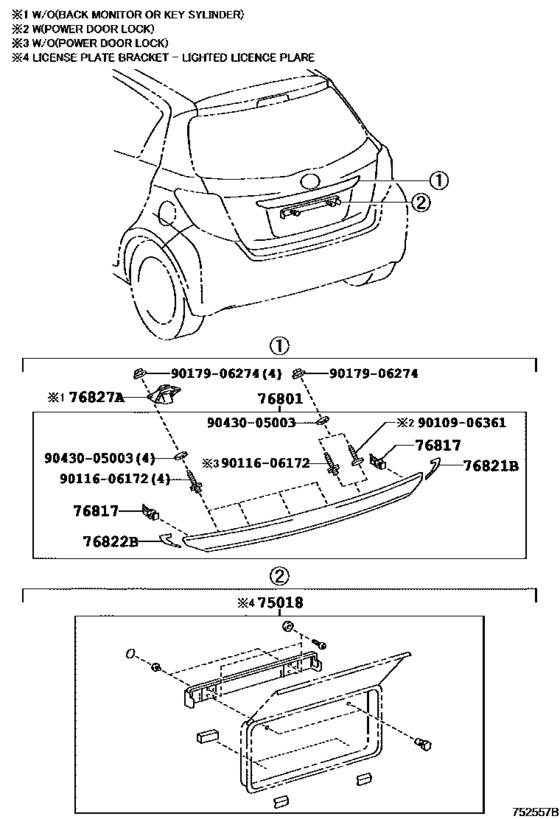

Rear Moulding ([08.2011 - 07.2014] (1108-1407)) 19

#	OEM	Part name
76801	76801-52240	Garnish Sub-Assy, Back Door, Outside
76801	76801-52340	Garnish Sub-Assy, Back Door, Outside
76801	76801-52350	Garnish Sub-Assy, Back Door, Outside
76801	76801-52370	Garnish Sub-Assy, Back Door, Outside
76801	76801-52900	Garnish Sub-Assy, Back Door, Outside
76817	76813-52010	Clip, Back Door Outside Garnish
76817	76817-12070	Clip, Back Door Outside Garnish
76817	76817-50010	Clip, Back Door Outside Garnish
76821	76821-52140	Protector, Back Door Garnish Side, Rh
76821	76821-52160	Protector, Back Door Garnish Side, Rh
76821	76821-52180	Protector, Back Door Garnish Side, Rh
76822	76822-52070	Protector, Back Door Garnish Side, Lh
76822	76822-52080	Protector, Back Door Garnish Side, Lh
76827	76827-52020	Retainer, Back Door Garnish, No.2
76827	76827-52040	Retainer, Back Door Garnish, No.2
9010906361	90109-06361	BOLT
9011606172	90116-06172	BOLT STUD
9017906274	90179-06274	Nut
9043005003	90430-05003	GASKET

OEM	Part name	Category
76801-52240	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76801-52340	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76801-52350	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76801-52370	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76801-52900	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76813-52010	Clip, Back Door Outside Garnish	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76817-12070	Clip, Back Door Outside Garnish	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76817-50010	Clip, Back Door Outside Garnish	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76821-52140	Protector, Back Door Garnish Side, Rh	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76821-52160	Protector, Back Door Garnish Side, Rh	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76821-52180	Protector, Back Door Garnish Side, Rh	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76822-52070	Protector, Back Door Garnish Side, Lh	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76822-52080	Protector, Back Door Garnish Side, Lh	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76827-52020	Retainer, Back Door Garnish, No.2	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
76827-52040	Retainer, Back Door Garnish, No.2	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
90109-06361	BOLT	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
90116-06172	BOLT STUD	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
90179-06274	Nut	Rear Moulding ([08.2011 - 07.2014] (1108-1407))
90430-05003	GASKET	Rear Moulding ([08.2011 - 07.2014] (1108-1407))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 230
Collected: 2026-08-04
