Search › Model › NCP130

NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

3,571 items

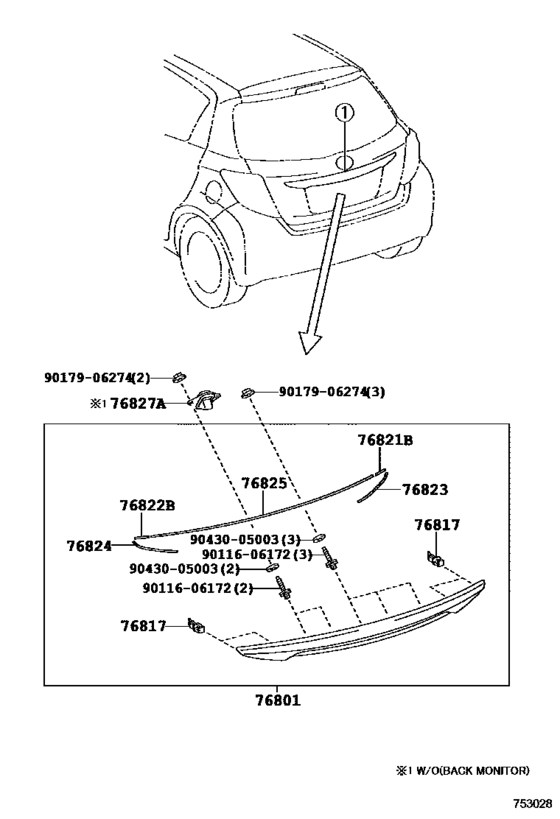

Rear Moulding ([07.2014 - 01.2017] (1407-1701)) 20

#	OEM	Part name
76801	76801-52240	Garnish Sub-Assy, Back Door, Outside
76801	76801-52340	Garnish Sub-Assy, Back Door, Outside
76801	76801-52350	Garnish Sub-Assy, Back Door, Outside
76801	76801-52370	Garnish Sub-Assy, Back Door, Outside
76801	76801-52900	Garnish Sub-Assy, Back Door, Outside
76817	76813-52010	Clip, Back Door Outside Garnish
76817	76817-12070	Clip, Back Door Outside Garnish
76817	76817-50010	Clip, Back Door Outside Garnish
76821	76821-52140	Protector, Back Door Garnish Side, Rh
76821	76821-52160	Protector, Back Door Garnish Side, Rh
76821	76821-52180	Protector, Back Door Garnish Side, Rh
76822	76822-52070	Protector, Back Door Garnish Side, Lh
76822	76822-52080	Protector, Back Door Garnish Side, Lh
76823	76822-52090	Protector, Back Door Garnish Moulding, Rh
76825	76825-52060	Protector, Back Door Outside Garnish
76827	76827-52020	Retainer, Back Door Garnish, No.2
76827	76827-52040	Retainer, Back Door Garnish, No.2
9011606172	90116-06172	BOLT STUD
9017906274	90179-06274	Nut
9043005003	90430-05003	GASKET

OEM	Part name	Category
76801-52240	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76801-52340	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76801-52350	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76801-52370	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76801-52900	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76813-52010	Clip, Back Door Outside Garnish	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76817-12070	Clip, Back Door Outside Garnish	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76817-50010	Clip, Back Door Outside Garnish	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76821-52140	Protector, Back Door Garnish Side, Rh	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76821-52160	Protector, Back Door Garnish Side, Rh	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76821-52180	Protector, Back Door Garnish Side, Rh	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76822-52070	Protector, Back Door Garnish Side, Lh	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76822-52080	Protector, Back Door Garnish Side, Lh	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76822-52090	Protector, Back Door Garnish Moulding, Rh	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76825-52060	Protector, Back Door Outside Garnish	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76827-52020	Retainer, Back Door Garnish, No.2	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
76827-52040	Retainer, Back Door Garnish, No.2	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
90116-06172	BOLT STUD	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
90179-06274	Nut	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
90430-05003	GASKET	Rear Moulding ([07.2014 - 01.2017] (1407-1701))
