Search › Model › NCP130

NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

3,571 items

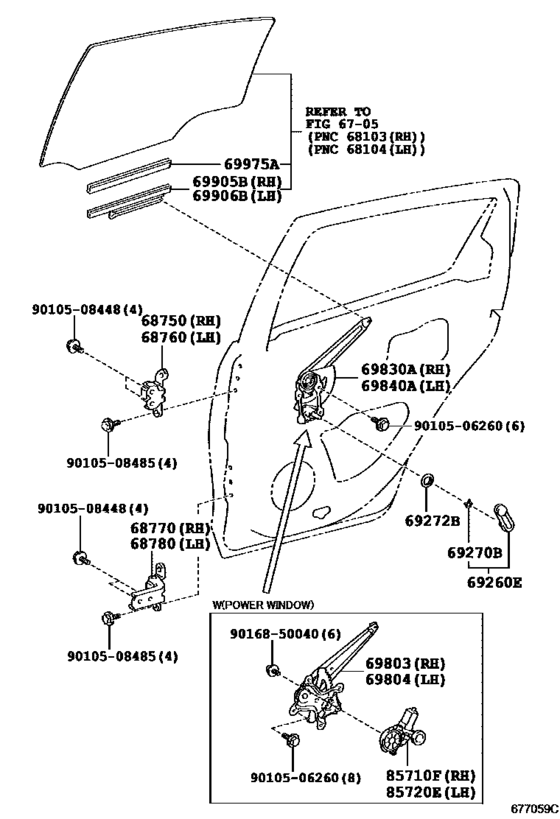

Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D) 22

#	OEM	Part name
68750	68750-20121	Hinge Assy, Rear Door, Upper Rh
68750	68750-20122	Hinge Assy, Rear Door, Upper Rh
68760	68760-20121	Hinge Assy, Rear Door, Upper Lh
68760	68760-20122	Hinge Assy, Rear Door, Upper Lh
68770	68770-52031	Hinge Assy, Rear Door, Lower Rh
68780	68780-52031	Hinge Assy, Rear Door, Lower Lh
69260	69260-14030-C0	Handle Assy, Rear Door Window Regulator (BLACK)
69270	90520-01274	Ring, Shaft Snap(For Front Door Window Regulator Handle)
69272	69268-52010	Plate, Front Door Regulator Inside Handle
69803	69803-52090	Regulator Sub-Assy, Rear Door Window, Rh
69804	69804-52100	Regulator Sub-Assy, Rear Door Window, Lh
69830	69830-52260	Regulator Assy, Rear Door Window, Rh
69840	69840-52260	Regulator Assy, Rear Door Window, Lh
69905	69905-52060	Channel Sub-Assy, Rear Door Glass, Rh
69906	69906-52060	Channel Sub-Assy, Rear Door Glass, Lh
69975	69975-52010	Filler, Rear Door Glass Channel
85710	85720-52150	Motor Assy, Power Window Regulator, Rh
85720	85710-52160	Motor Assy, Power Window Regulator, Lh
9010506260	90105-06260	BOLT, WASHER BASED
9010508448	90105-08448	BOLT FLANGE
9010508485	90105-08485	BOLT FLANGE
9016850040	90168-50040	SCREW TAPPING

OEM	Part name	Category
68750-20121	Hinge Assy, Rear Door, Upper Rh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
68750-20122	Hinge Assy, Rear Door, Upper Rh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
68760-20121	Hinge Assy, Rear Door, Upper Lh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
68760-20122	Hinge Assy, Rear Door, Upper Lh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
68770-52031	Hinge Assy, Rear Door, Lower Rh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
68780-52031	Hinge Assy, Rear Door, Lower Lh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69260-14030-C0	Handle Assy, Rear Door Window Regulator (BLACK)	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69268-52010	Plate, Front Door Regulator Inside Handle	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69803-52090	Regulator Sub-Assy, Rear Door Window, Rh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69804-52100	Regulator Sub-Assy, Rear Door Window, Lh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69830-52260	Regulator Assy, Rear Door Window, Rh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69840-52260	Regulator Assy, Rear Door Window, Lh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69905-52060	Channel Sub-Assy, Rear Door Glass, Rh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69906-52060	Channel Sub-Assy, Rear Door Glass, Lh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
69975-52010	Filler, Rear Door Glass Channel	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
85710-52160	Motor Assy, Power Window Regulator, Lh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
85720-52150	Motor Assy, Power Window Regulator, Rh	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
90105-06260	BOLT, WASHER BASED	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
90105-08448	BOLT FLANGE	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
90105-08485	BOLT FLANGE	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
90168-50040	SCREW TAPPING	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
90520-01274	Ring, Shaft Snap(For Front Door Window Regulator Handle)	Rear Door Window Regulator & Hinge ([08.2011 - ] (1108- )5D)
