Search › Model › NCP130

NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

3,571 items

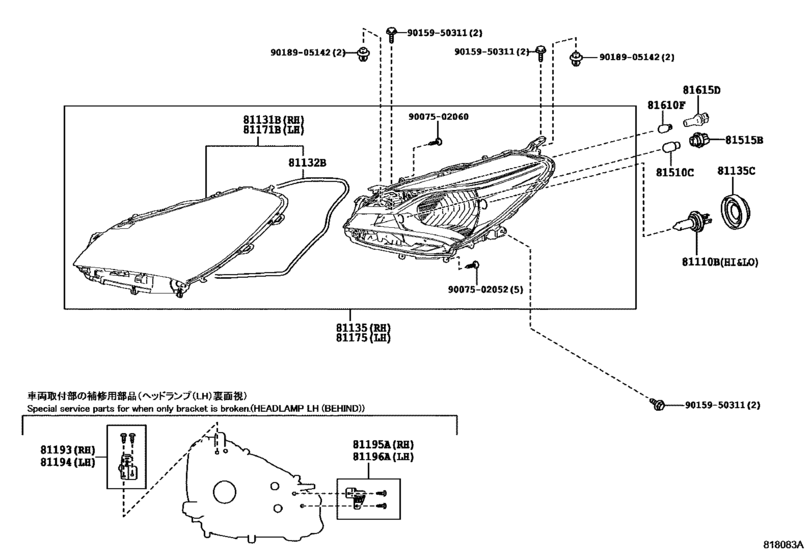

Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- )) 31

#	OEM	Part name
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90084-98033	Bulb(For Headlamp, No.1)
81131	81131-52L40	Head Lamp Lens, Rh
81132	81132-30E40	Gasket, Headlamp Lens
81135	81130-52L90	Unit Assy, Headlamp, Rh
81135	90075-65002	Cover, Headlamp Back, No.1
81171	81171-52L40	Head Lamp Lens, Lh
81175	81170-52L90	Unit Assy, Headlamp, Lh
81193	81193-52200	Retainer, Headlamp Protector, Upper Rh
81193	81193-52260	Retainer, Headlamp Protector, Upper Rh
81193	81193-52290	Retainer, Headlamp Protector, Upper Rh
81194	81194-52190	Retainer, Headlamp Protector, Upper Lh
81194	81194-52200	Retainer, Headlamp Protector, Upper Lh
81194	81194-52280	Retainer, Headlamp Protector, Upper Lh
81195	81195-52160	Retainer, Headlamp Protector, Lower Rh
81195	81195-52190	Retainer, Headlamp Protector, Lower Rh
81195	81195-52220	Retainer, Headlamp Protector, Lower Rh
81196	81196-52160	Retainer, Headlamp Protector, Lower Lh
81196	81196-52170	Retainer, Headlamp Protector, Lower Lh
81196	81196-52200	Retainer, Headlamp Protector, Lower Lh
81510	90981-15021	Bulb (For Front Turn Signal Lamp)
81515	90075-60028	Socket, Headlamp, Bulb
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	90075-60077	Clearance Lamp Socket
81615	90075-60089	Socket, Clearance Lamp
9007502052	90075-02052	SCREW
9007502060	90075-02060	Screw, Headlamp
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
81130-52L90	Unit Assy, Headlamp, Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81131-52L40	Head Lamp Lens, Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81132-30E40	Gasket, Headlamp Lens	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81170-52L90	Unit Assy, Headlamp, Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81171-52L40	Head Lamp Lens, Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81193-52200	Retainer, Headlamp Protector, Upper Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81193-52260	Retainer, Headlamp Protector, Upper Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81193-52290	Retainer, Headlamp Protector, Upper Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81194-52190	Retainer, Headlamp Protector, Upper Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81194-52200	Retainer, Headlamp Protector, Upper Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81194-52280	Retainer, Headlamp Protector, Upper Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81195-52160	Retainer, Headlamp Protector, Lower Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81195-52190	Retainer, Headlamp Protector, Lower Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81195-52220	Retainer, Headlamp Protector, Lower Rh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81196-52160	Retainer, Headlamp Protector, Lower Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81196-52170	Retainer, Headlamp Protector, Lower Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
81196-52200	Retainer, Headlamp Protector, Lower Lh	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90075-02052	SCREW	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90075-02060	Screw, Headlamp	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90075-60028	Socket, Headlamp, Bulb	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90075-60077	Clearance Lamp Socket	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90075-60089	Socket, Clearance Lamp	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90075-65002	Cover, Headlamp Back, No.1	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90084-98033	Bulb(For Headlamp, No.1)	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90159-50311	SCREW	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90159-A0034	SCREW WWASHER	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90189-05142	GROMMET, SCREW	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
90981-15021	Bulb (For Front Turn Signal Lamp)	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
99132-12050	Bulb (12V 5W)	Headlamp ([01.2017 - ] HALOGEN HEADLAMP (1701- ))
